Highway Guardrail Production Line Metal Highway Guardrail Cold Roll Forming Machine

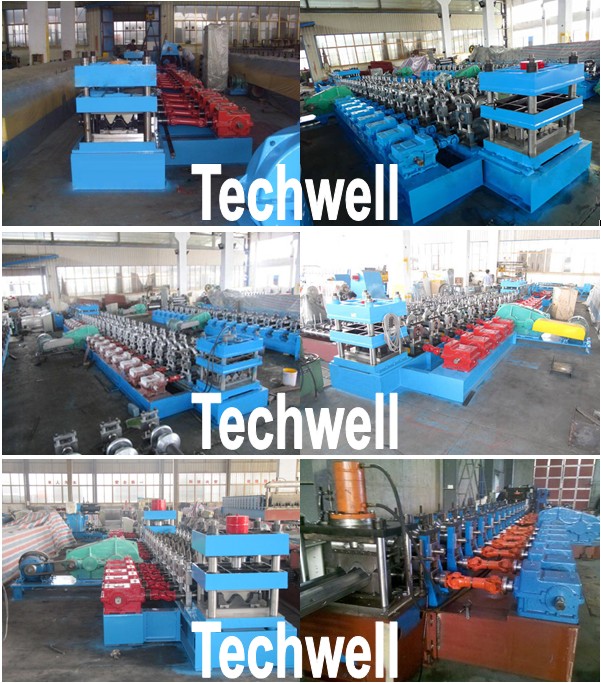

Summary of W Beam Roll Forming Machine

This w beam roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.

Feeding and flattening
Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
Diameter of flattener shaft:¢70mm, material is SAE 1045, hardening and tempering

Punching
Adopt Hydraulic punching
Diameter of cylinder¢140mm
Working pressure: 20mpa
The punches and dollies will be CR-12, hardness HRC 58-62

Forming section
Cycloidal pin wheel reducer: BWD14-43-55KW
Transmission:Gearbox 170#
Shaft diameter: ¢110 mm
Roller material: ASTM1045 chrome plated surface with chrome
Forming station: about 16 stations (according to the final design)
Machine roll forming speed :0-15m/min (without punching)

Thi

• Material Thickness: 2-4mm
• Forming Station: 15 excluding the feeding rollers and leveling rollers
• 7 Rollers leveling
• Principal Axis Diameter: ￠100mm
• Working Speed: 10-12m/min
• Main Power: 30KW
• Leveling Power: 2.2KW
• Hydraulic Power: 15KW
• Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
• Gross Weight of Machine: about 18 Ton
• Voltage: 380V, 3 Phase 50Hz

Main Components

• Hydraulic Decoiler ------------------------------------------ 1 Unit
• Leveling and Feeding Guide -------------------------------- 1 Unit
• Punching Device ------------------------------------------- 1 Unit
• Roll Forming Machine -------------------------------------- 1 Unit
• Hydraulic Cutting ------------------------------------------ 1 Unit
• Hydraulic Station ------------------------------------------ 1 Unit
• PLC Contol System ---------------------------------------- 1 Unit
• Runout Table ---------------------------------------------- 1 Unit
• Spare Coupling -------------------------------------------- 1 Unit

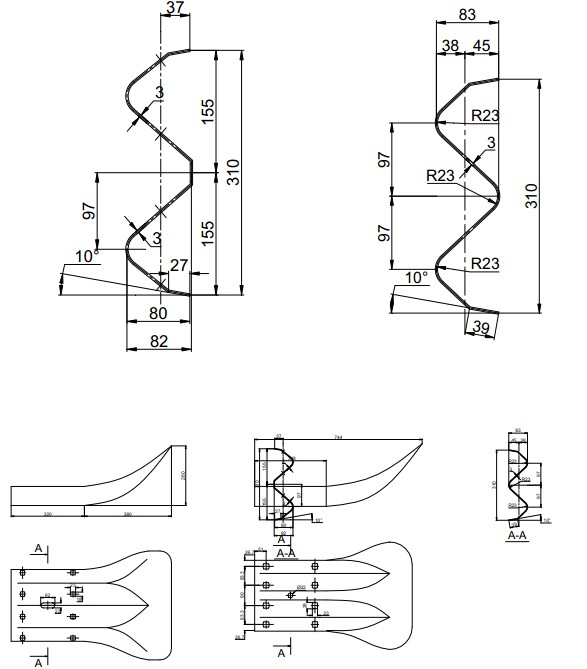

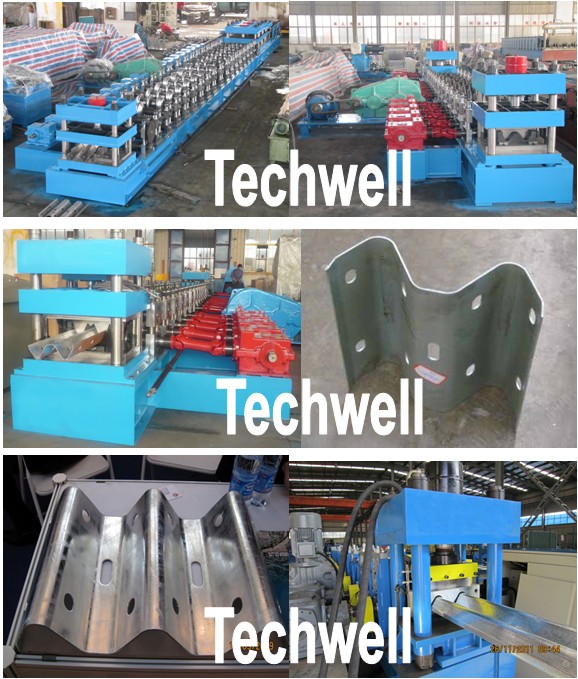

Reference Drawing

Our Advantage

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

Wuxi Techwell Machinery Co.,Ltd is a professional manufacturer specializing in the developing and exporting of cold roll forming machines and insulated sandwich panel machines and Slitting cutting machines.

Roll Forming Machines: Metal roof & wall panel roll forming machine, steel tile roll forming machine, dual level roll forming machine, C/Z/U/L shaped steel roll forming machine, drywall stud and track roll forming machine, steel floor deck roll forming machine, highway guardrail roll froming machinem downspout roll forming machine, rainwater gutter roll forming machine, portable downspout / gutter machines, door frame roll forming machine, roller shutter door roll forming machine, no-girder k span arched panel roll forming machine, slitting & cutting, roof curving machine, stacker machine and so on.

Insulated Sandwich Panel Machines: PU sandwich panel machine, rubber belt pu sandwich panel machine, continuous pu sandwich panel machine, EPS sandwich panel machine, rockwool sandwich panel machine, eps & rockwool sandwich panel machine, mineral wool sandwich panel machine and so on.

Wuxi Techwell engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old customers. In paticular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, through design and installation. Our goal is " Future by heartiness, faith leads to the world".

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
