    GI CS Rack Shelf Roll Forming Machine Hydraulic Cutting Upright Roll Forming Machine

    Supermarket Shelf Roll Forming Machine Shelf Rack Upright Roll Forming Machine

    Storage Racking Box Beam Production Line is for making the racking load beam section profiles.


    ItemSpecification

    Material

    TypeGalvanized coils
    Thickness2.0-3.0mm
    Yield strength550Mpa
    Roller materialNo. 45 forged Steel
    Forming speedAbout 15-20m/min
    Output speed15m/min
    Speed adjusting modeAC Frequency
    Roller driveDecelerating motor + Chain drive
    Cutting modeHydraulic cutting
    Cutter materialCr12 mould steel
    Length measurementEncoder
    Control modeMitsubishi PLC
    Operating modeButton + Mitsubishi Touch screen
    Main motor power(kw)11*2KW
    Hydraulic station motor power(kw)5.5 KW

    Introduction of Rack Beam Roll Forming Machine


    Racking system box beam roll forming machine is designed to produce various sizes of box beam sections as the client's profile drawing or requirements. The standard material thickness is 1.5-2.0mm, or upto 2.5mm.

    And the Whole box beam roll former is made up with 3 Ton Uncoiler, feeding & leveling, main roll forming, hydraulic cutting, hydraulic station, plc control board, support tables and box beam interlock machine.

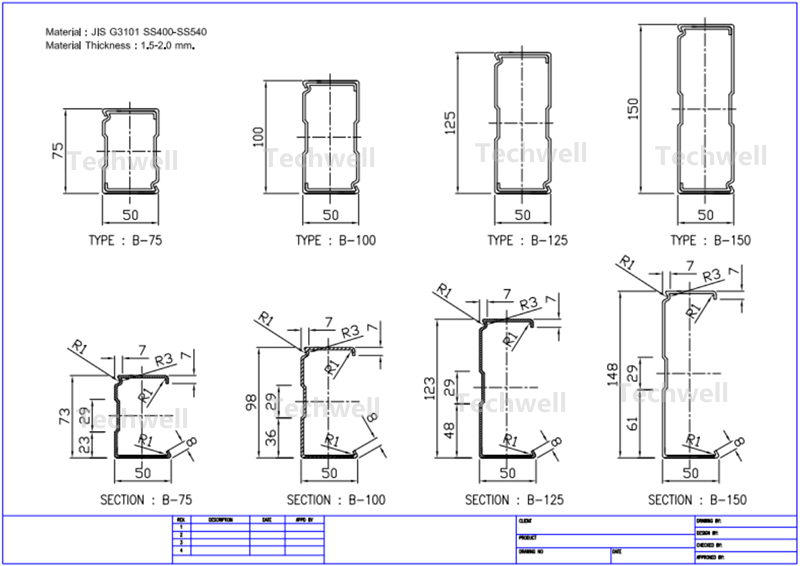

    Box Beam Profiles



    Main Specifications of Upright Rack Roll Forming Machine


    Main Specifications of Box Beam Roll Forming Machine
    No.ItemParameterRemark
    1.Suitable MaterialTypeJIS G3101 SS400-SS540
    Thickness1.5-2.0mm
    WidthBased on profile
    2.Profile Size

    C100 * 50mm

    C125 * 50mm


    3.Line Speed0-20m/min.excluding cut time
    3.Forming Station 14
    5.Shaft DiameterΦ70mmRoll forming
    Φ75mmBeam lock machine
    6.Roller MaterialGCr15 bearing steel, HRC 58-62° and roller surface with hard chrome ≥ 0.05mm
    7.Drive TypeChain Drive
    8.Forming StructureWelded wall structure
    9.Motor PowerMain Machine 11KW + 3KW

    Hydraulic Stations


    5.5KWFor cutting
    10.Total Power 19.5KW
    11.Electric SourceAC380V, 3 PhaseOr Customized
    12.Main Machine colorBlueOr Customized

    The Working Flow of Step Beam Forming Machine


    Uncoiler --> Feeding & Leveling --> Roll Forming --> Cutting --> Seam lock Machine -->Run-out Tables


    Main Components of Upright Rack Production Line


    Hydraulic Decoiler1 Unit
    Leveling1 Unit
    Main Roll Forming Machine1 Unit
    Hydraulic Cutting1 Unit
    Seamlock Machine1 Unit
    Electric Control System1 Unit
    Run out Table1 Unit
