Color Steel PPGI 15m/Min Tile Sheet Forming Machine 14 Stations

    Buy cheap Color Steel PPGI 15m/Min Tile Sheet Forming Machine 14 Stations from wholesalers

    Buy cheap Color Steel PPGI 15m/Min Tile Sheet Forming Machine 14 Stations from wholesalers
    • Buy cheap Color Steel PPGI 15m/Min Tile Sheet Forming Machine 14 Stations from wholesalers

    Color Steel PPGI 15m/Min Tile Sheet Forming Machine 14 Stations

    Ask Lasest Price
    Brand Name : TECHWELL
    Model Number : TE-TRE
    Certification : CE, ISO
    Price : Contact Us
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 sets
    Delivery Time : 55-65 working days
    • Product Details
    • Company Profile

    Color Steel PPGI 15m/Min Tile Sheet Forming Machine 14 Stations

    15m/Min 14 Stations Color Steel PPGI Cold Roll Forming Machine* Main-machine interface touch screen for easy operation


    * Automatic material feeding system

    * The machine can be used for different type of stud and track

    * Automatic electric control system make production safety ang efficiency

    * Solid shaft and high quality rollers make the machine working smoothly and endurable

    * Low noise,low wasting ,energy saving and environmental


    Features of Our Cold Roll Forming Machine:

    a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is a screw which makes the machine flexible and stronger.
    b) All the components of machines are from brand-famous enterprises so that they ensure the machine normal function very effectively.
    c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
    d) It is very easy to install the equipment and suitable for production in the factory.
    e) Low noise with high efficiency


    Cold Roll Forming Machine Main Specifications

    light keel roll forming machine
    Equipment operationAutomatically
    Voltage380V,50/60Hz or at buyer's request
    Thickness of material sheet0.3----0.8mm(normally)
    Width of material sheetAs drawing
    Control systemBy PLC(imported brand)
    Cutting methodHydraulic cutting
    Material of roller stationGcr12 with hard treatment
    Formed widthAs drawing
    Working speed15-20m/min
    Length of finished productset in computer, machine will cut automatically
    Transmission typegears

    Working Flow Chart

    Decoiler → Feeding Guide → Hydraulic Cutting → Main Roll Forming → Support Table


    Our Cold Roll Forming Machine Main Components

    Decoiler1 Unit
    Pinch Feeding1 Unit
    Hydraulic Cutting1 Unit
    Main roll forming machine1 Unit
    PLC computer control1 Unit
    Output table1 Unit

    Competitive Advantages

    1. High Quality
    2. Good after Service
    3. 1 Year Warranty
    4. More Than 10 Years Experience
    5. Simple to operate when assemble
    6. Easy to handle the products
    7. Direct manufacturer, provide with high quality and best price.

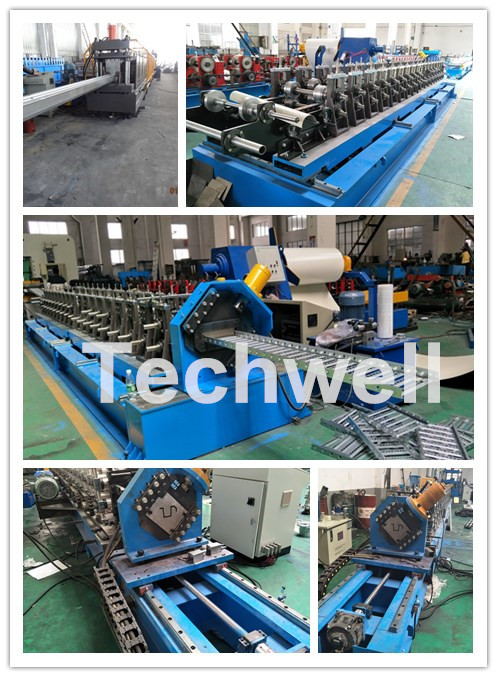

    More Machine Pictures

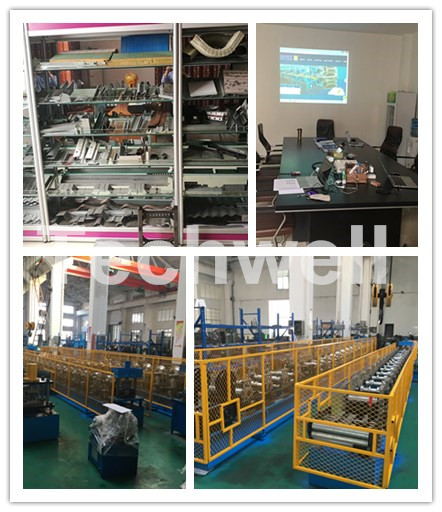

    Workshop Machine Photos



    Company Introduction:

    Wuxi Techwell engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old customers. In paticular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, through design and installation. Our goal is " Future by heartiness, faith leads to the world".
