    PLC Control 7 Rollers Cable Tray Roll Forming Machine

    GI Or Carbon Steel Coil Forming Material Cable Profile Roll Forming Machine For Making Steel Cable Tray Sheets


    Introduction of Cable Ladder Roll Former



    1. This cable ladder roll forming machine adopt coil production material to form CT100-600 cable ladder Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Pre-Punching Machine, Main cable ladder roll forming part, Post hydraulic cutting, hydraulic station, PLC control system and Non-power type support table.


    2. The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.


    3. Working Speed: about 0-15 m/min ( excluding punching & cutting time);


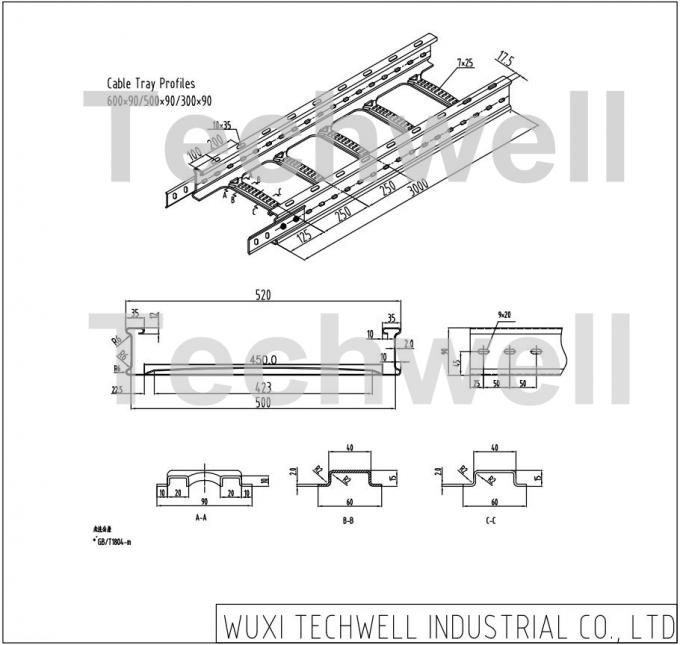

    Cable Tray Profile & Finished Cable Ladder Sheets



    Main Specifications


    1) Forming material thickness: 1.5-2.5mm

    2) Forming material type: GI or Carbon Steel

    3) Yield Strength: 230-300Mpa

    4) Machine Frame: high grade steel welded and tempering treatment

    5) Forming Speed: 0-15m/min (excluding punching / cutting time)

    6) Forming Motor: 15KW

    7) Width adjustable motor 1.5KW

    8) Size adjustment: electrical power adjustment

    9) Drive type: Chain Drive

    10) Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

    11) Shaft Diameter: Φ 85mm

    12) Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

    13) Forming Station: ≈ 18 stations

    14) Punching TYpe: Hydraulic Pre-punching

    15) Hydraulic Power: 11Kw

    16) Cutting Blade: Hydraulic Cutting

    17) Cutting Blade Material: Cr12Mov, Quench treatment, HRC58-62

    18) Finished profile straightness tolerance ≤±1.5mm/10m

    19) Finished profile angle tolerance ≤±1.5 degree/10m


    Working Flow Chart


    Decoiling --- Guiding & Leveling --- Punching --- Roll Forming --- Hydraulic Cutting --- Run-out Table


    Main Components


    • Hydraulic Decoiler --------------------------------------------------------- 1 Unit
    • Leveling Device ------------------------------------------------------------ 1 Unit
    • Servo Feeding -------------------------------------------------------------- 1 Unit
    • Hydraulic Pre-Punching -------------------------------------------------- 1 Unit
    • Main Roll Forming Machine ---------------------------------------------- 1 Unit
    • Hydraulic Cutting ------------------------------------------------------------1 Unit
    • PLC Electrical Control Board -------------------------------------------- 1 Unit
    • Hydraulic Stations ---------------------------------------------------------- 1 Unit
    • Run Out Table --------------------------------------------------------------- 1 Unit
