    Color Steel Plate , Galvanized Steel Roof Ridge Valley Roll Forming Machine For Making Ridge Cap , Ridge Tile

    Ask Lasest Price
    Brand Name : TECHWELL
    Model Number : TW-RCM
    Certification : CE, ISO
    Price : Contact us
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 Sets
    Delivery Time : 55-65 Working Days
    • Product Details
    • Company Profile

    Color Steel Plate , Galvanized Steel Roof Ridge Valley Roll Forming Machine For Making Ridge Cap , Ridge Tile

    Color Steel Plate, Galvanized Steel Roof Ridge Valley Roll Forming Machine For Making Ridge Cap, Ridge Tile


    Main Technical Specifications


    Material thickness0.3-0.7mm
    MaterialGalvanized, Pre-painted, with yield strength 300Mpa
    Forming Standsabout 15 groups ( depend on final design )
    Material of RollerHigh grade 45# steel, all treated by CNC precise machines, and coated with 0.05mm hard chrome and polishing treatment.
    Material of ShaftHigh grade 45# steel with heat treatment.
    Shaft Diameter¢75mm
    Working Speed0-15 m/min
    Main Power5.5 KW
    PLCPANASONIC Brand
    EncoderOMRON Brand
    TranducerPANASONIC Brand
    Voltage380V, 3 Phase 50Hz ( or according to customers local requirement )
    Machine Weightabout 5.5 Ton
    Machine Dimensionabout 8000mm(L) x 1200mm(W) x 1400mm(H)

    This roll forming machine suits for coiled metal material, make required shape after processing of uncoiling, forming continuously and cutting to length. Adopt PLC controlling system, AC frequency adjusting-speed technology, so that realize automatic production continuously.


    Main Components


    Decoiler1 Unit
    Feeding guide1 Unit
    Main roll forming machine1 Unit
    Hydraulic cutting1 Unit
    Hydraulic station1 Unit
    PLC computer control1 Unit
    Output table1 Unit

    Working Flowing


    Decoiler --- Feeding Guide --- Roll Forming --- Cut-to-length --- Run out Table



    Applications


    Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.


    Competitive Advantages


    • High Quality
    • Reasonable Price
    • Good after Service
    • 1 Year Warranty
    • More Than 10 Years Experience

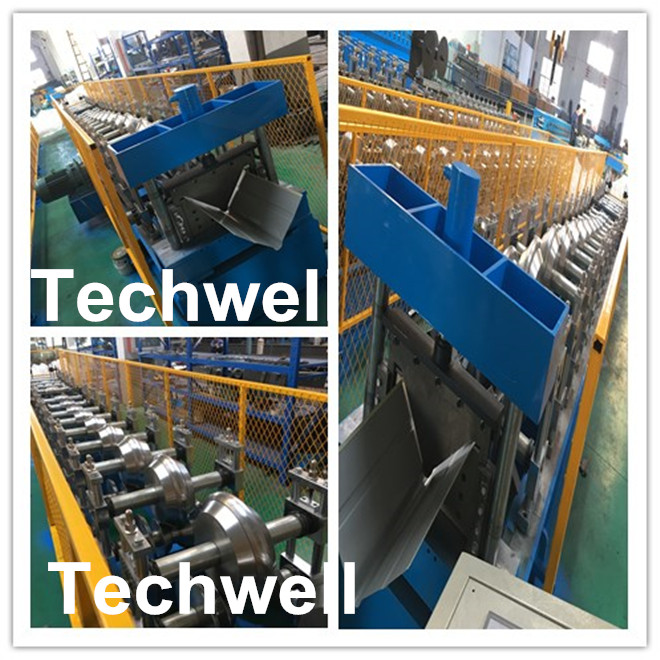

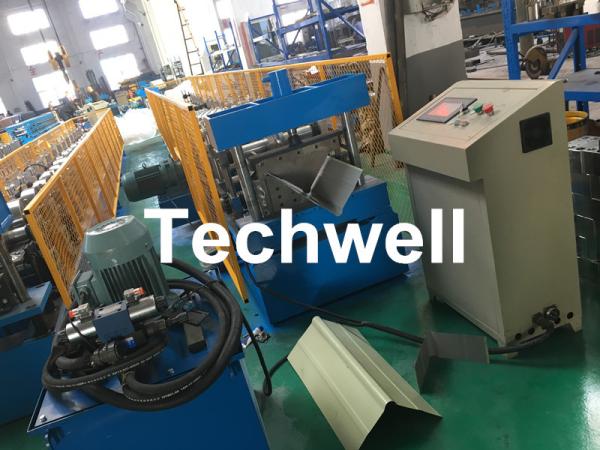

    More Machine Pictures



    Contacts of WUXI TECHWELL


    CompanyWuxi Techwell Machinery Co.,Ltd
    Website

    www.wxtechwell.com

    www.cold-rollformingmachine.com

    Email / Skypesales@wxtechwell.com
    Mob / Whatsapp+86-15861597732 (Miss Lemon)
