    Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed

    Ask Lasest Price
    Brand Name : TECHWELL
    Model Number : TW-RCM
    Certification : CE, ISO
    Price : Contact us
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 Sets
    Delivery Time : 55-65 Working Days
    • Product Details
    • Company Profile

    Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed

    Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed


    Introduction of Vallet Flashing Machine, Roof Ridge Cap Machine


    • The cap ridge roll forming machine is to produce angel title saving human resources and lower labor cost. This equipment is made up of automatic discharge table, feed leading table, and main forming machine, cutting device, hydraulic station and computer control system. Especially, the Optional system is normal uncoiler and hydraulic uncoiler.
    • This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on. It is producted continuously as roll forming machine instead using bending machine to make angel tile saving human resources, lower labor cost.
    • The roof ridge cap roll forming machine can form metal ridge which is mostly used with colorful roofing tile sheets. After roll formed by this machine, the surface will be smooth and beautiful without any scratch on surface.

    Main Technical Specifications


    NOTechnical SpecificationsRemark
    1Manual DecoilerDecoiler TypeManual passive decoiler
    Weight capacity of decoiler3 Ton
    Manual expansing, passive uncoil
    2Main Roll Forming MachineRaw materialColor steel plate, galvanized steel
    Coil thickness0.3-0.8mm
    Roller standsapprox 15 stations
    Type of forming machineChain transmission
    Roller materialHigh grade 45# steel, and surface coated with 0.05mm hard chrome
    Shaft diameter¢75mm
    Material of ShaftHigh grade 45# steel
    Motor power5.5KW
    Cutting typeHydrauluic cutting
    Hydraulic power3.0KW
    Forming speedabout 0-15m/min
    3Mobile Protective MeshTo avoid accidents, the machine will be covered with the mobile protective mesh
    4Hydraulic pressing & cutting systemMaterial of blade / pressing mouldCr12, 58-62 HRC hardness
    Cutting typeHydraulic cutting
    Hydraulic power3.0KW
    Length measuringAutomatic encoder length measuring
    Tolerance of length+/-1.5mm for each piece end product
    EncoderOMRON Brand
    5Electrical SystemPLCPANASONIC Brand
    InverterYASKAWA Brand
    Touch screenPANASONICE
    Operation typeTouch screen & Button
    6Hydraulic StationHydraulic stationFamous Chinese brand
    7Support TablesTable typeSimple nonpower type
    FunctionTo support the finished corrugated panels

    Working Flow Chart


    Decoiler --- Feeding Guide --- Roll Forming --- Cut-to-length --- Run out Table



    Applications


    Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.

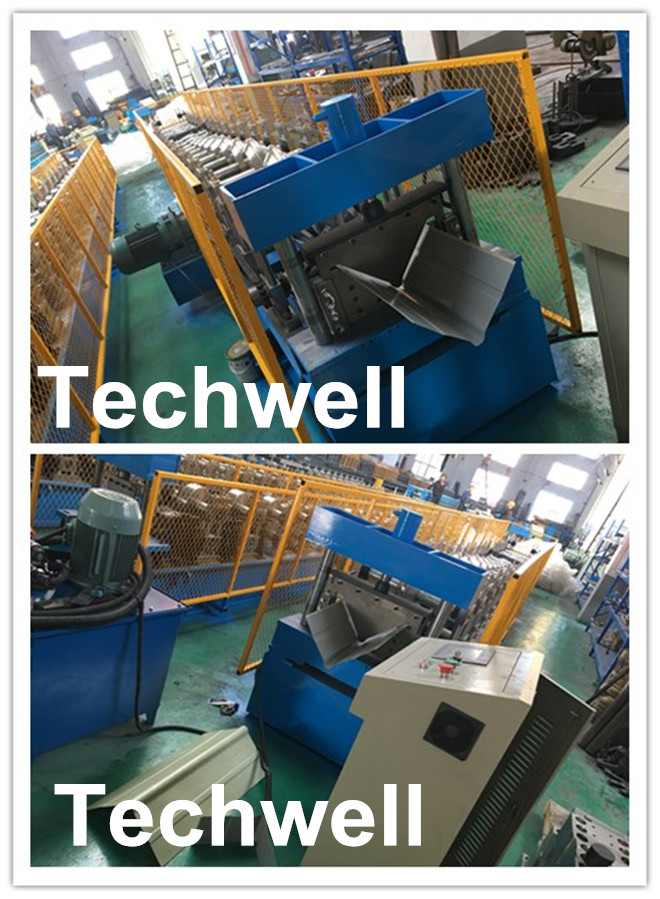

    More Machine Pictures
