Single Side Adjustable C Profile Roll Forming Machine For Material Thickness 1.5-3.0mm, Hydraulic Pre-Cutting Device

Description of C Profile Roll Former

• This C purlin roll forming machine adopt coil production material to form C Profiles through 5 Ton manual decoiler, pinch feeding, leveling rollers, Punching unit, Pre-cutting, main roll forming part, hydraulic station, PLC control system and Non-power type support table.
• The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.
• Forming Speed: about 0-15 m/min ( excluding punching & cutting time);

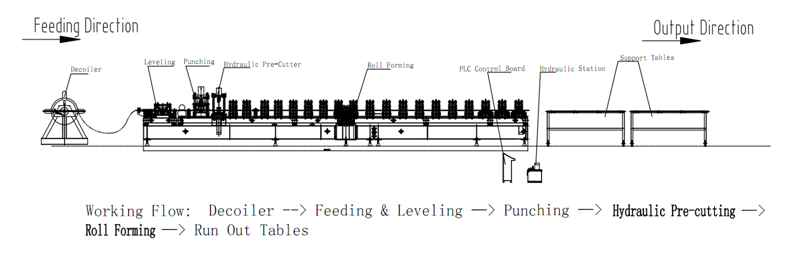

Working Flowing

Decoiler ---- Pinch Feeding --- Leveling --- Hydraulic Punching --- Pre-cutting --- Main Roll Forming ---

Calibration Device --- Support Table

Main Components

• Decoiler / Uncoiler ------------------------------------------------------1 Unit
• Pinch Feeding------------------------------------------------------------1 Unit
• 7 Rollers Leveling -------------------------------------------------------1 Unit
• Hydraulic Punching -----------------------------------------------------1 Unit
• Pre-cutting ----------------------------------------------------------------1 Unit
• Main Roll Fomring -------------------------------------------------------1 Unit
• Hydraulic Station ---------------------------------------------------------1 Unit
• Electrical Control Board ------------------------------------------------1 Unit
• Run-out Table ------------------------------------------------------------1 Unit

Main Specification

Reference Profile Drawing

More Machine Pictures
