    Custom made Octagonal Aluminum Or Galvanized Steel Tubing Roll Forming Machine With PLC Frequency Control

    Custom-made Octagonal Aluminum Or Galvanized Steel Tubing Roll Forming Machine With PLC Frequency Control


    Product Description


    Octagon steel Pipe is made of steel or aluminium, and it is an important parts of roller shutter door.


    Our octagon steel pipe roll forming machine is an ideal machine to realize massive production of octagon pipe.


    Working Flow


    Decoiler-----------Feeding Guide--------Hole Punching--------Roll Forming-------Cut To Length-----Output Table


    Main Technical Parameters


    1.Decoiler

    • ​Decoiler Type: Manual decoiler
    • Manual expansion device
    • Coil Width: Max. 1250mm
    • I.D: 508-610mm
    • O.D: Max.1500mm

    2. Feeding Guide

    • Function: It is used to release the head of coil and feed into the forming machine, making the coil straight and flat after decoiling

    3. Punching Hole Die

    • Punching type: Hydraulic punching
    • Punching Die: Cr12Mov, quenching process HRC58-62
    • Punching Die Size: According to drawing
    • Punching controlled by PLC

    4. Roll Forming Machine

    • Material Thickness: 0.4-1.2mm
    • Forming Stations: 22 Stations (Depend on profiles)
    • Roller Material: GCr15 steel, with quenching HRC58-62
    • Diamter of Shaft: 60mm
    • Shaft Material: High grade 45# steel, quenched hardness 58-62
    • Drive Type: Gearbox transimission
    • Forming Speed: 8-10m/min
    • Main Power: 7.5KW

    5. Cut Off Device

    • Cutting Type: Fly saw cutting
    • Cutting Tolerance: 10m+/-0.5mm
    • Encoder: OMRON Brand

    6. Electrical Control

    • PLC: PANASONIC Brand
    • Inverter: YASKAWA Brand
    • Touch Screen: PANASONICE
    • Operation Type: Touch screen & Button

    7. Runout Table

    • Table Type: Simple nonpower type
    • Function: To support the finished panels

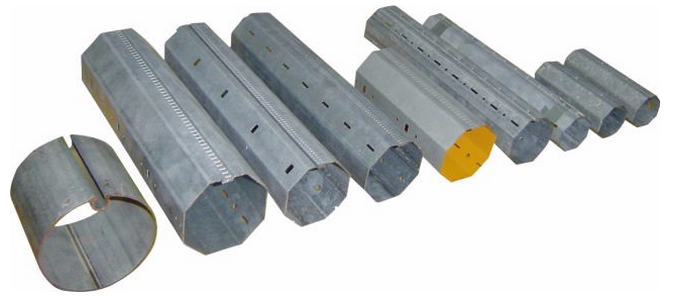

    Reference Profile Drawing



    Main Components


    • Decoiler / Uncoiler --------------------------------------------------1 Unit
    • Feeding Guide--------------------------------------------------------1 Unit
    • Hole Punching---------------------------------------------------------1 Unit
    • Roll Forming Machine-----------------------------------------------1 Unit
    • Fly Saw Cutting-------------------------------------------------------1 Unit
    • Control System-------------------------------------------------------1 Unit
    • Out-put Tables--------------------------------------------------------2 Units

    Competitive Advantages


    1. Durable and widely used products

    2.Simple to operate when assemble

    3.Direct manufacturer, provide with high quality and best price.

    4.Provide sample in free.

    5.Products and design solution supplied fast and freely

    6.Best design oriented for your special requirements

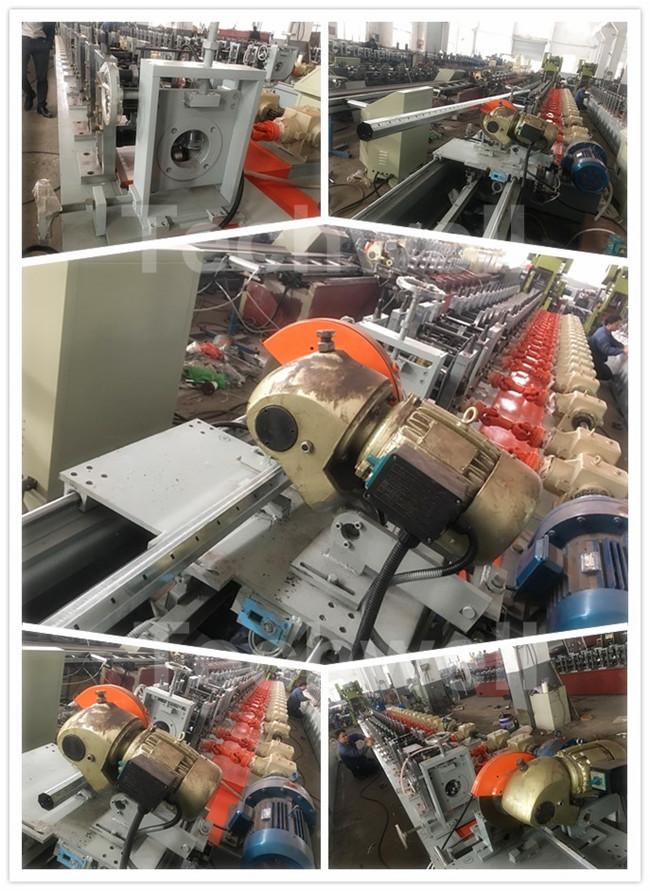

    More Reference Machine Pictures
