    Octagonal , Octagon Pipe Roll Forming Machine for Rolling Shutter Axes With Manual Decoiler / Uncoiler

    Octagonal, Octagon Pipe Roll Forming Machine for Rolling Shutter Axes With Manual Decoiler / Uncoiler


    Description of Octagonal Pipe Roll Former


    As its name shows, Octagonal Tube is new type building material. Octagonal Tubes are widely used in petrochemical, power plant desulfurization, aerospace, ships, machinery, communications, electronics and other fields. In the market, there are two types Octagonal Tubes, seamless and interloacked. The seamless Octagonal Tube is also made by cold draw pipe making machine. Here I will mainly show the interlock Octagonal Tube pipe with the interlocked seam.


    Main Specifications


    ItemOctagonal Pipe Roll Forming Machine
    Coil MaterialCoil WidthCustom-made
    MaterialGalvanized steel
    Thickness0.5-1.2mm
    Yield Strength100-260Mpa
    Decoiler / UncoilerDecoiler typeManual or Hydraulic or Auto Type
    Coil WidthMax. 1250mm
    I.D508-610mm
    O.DMax. 1500mm
    Roll Forming MachineForming Stations22 Stations(Depend on profiles)
    Roller MaterialGCr15 steel, with quenching HRC58-62
    Diameter of Shaft60mm
    Shaft MaterialHigh grade 45# steel, quenched hardness 58-62
    Drive TypeGear box transimission
    Forming Speed8-10m/min
    Main power7.5KW
    CuttingCutting TypePneumatic flying saw cutting off
    Cutting Tolerance10m+/-0.5mm
    EncoderOMRON Brand
    Electrical ControlPLCPANASONIC Brand
    InverterYASKAWA Brand
    Touch ScreenPANASONICE
    Operation TypeTouch screen & Button
    Runout TableTable TypeSimple nonpower type
    FunctionTo support the finished panels

    Reference Profile Drawing

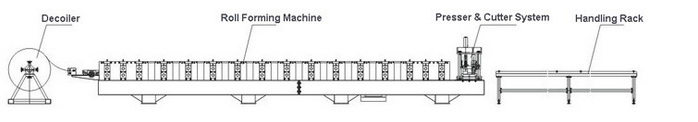

    Main Components


    • Decoiler / Uncoiler --------------------------------------------------1 Unit
    • Feeding Guide--------------------------------------------------------1 Unit
    • Roll Forming Machine-----------------------------------------------1 Unit
    • Control System-------------------------------------------------------1 Unit
    • Fly Saw Cutting-------------------------------------------------------1 Unit
    • Out-put Tables--------------------------------------------------------2 Units

    Working Flow


    Uncoiling – Feed Guiding–Roll forming ––fly saw cutting – Run-out table



    Competitive Advantages


    1. Durable and widely used products

    2.Simple to operate when assemble

    3.Direct manufacturer, provide with high quality and best price.

    4.Provide sample in free.

    5.Products and design solution supplied fast and freely

    6.Best design oriented for your special requirements


    More Reference Machine Pictures
