40mm, 60mm, 70mm, 80mm Octagon / Octagonal Pipe Roll Forming Machine With Fly Saw Cutting

Main Technical Data of Octagonal Pipe Machine

• Coil Thickness: 0.8-1.2mm
• Material Spec: 40mm, 60mm, 70mm, 80mm
• Forming Speed: 8-10m/min (excluding cutting time)
• Forming Roller: About 20 Stations (Depend on profile)
• Main motor power:7.5KW
• Roller Material: GCr15 steel, with quenched HRC58-62
• Main Axis Dia. : 60mm
• Shaft material: 45# steel
• Cutting method: Fly saw cutting
• Forming Structure: Guiding colum + slide blocks
• Electrical control system: Whole line adopted PLC control
• Cutting Tolerance: 10m +/-0.5mm
• Drive Type: Gear box drive

Production Line Machine List

Reference Profile Drawing

Working Flow

Uncoiling – Feed Guiding–Roll forming ––fly saw cutting – Run-out table

Competitive Advantages

1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

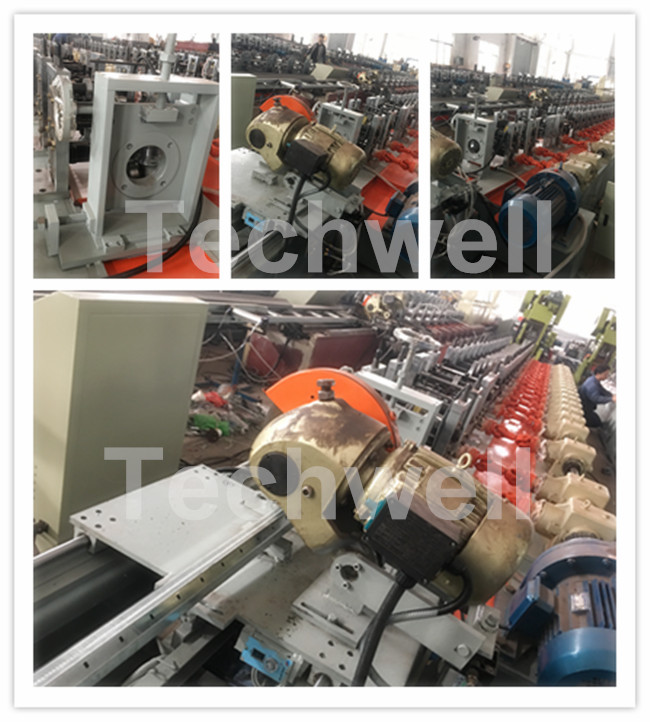

More Machine Pictures
