    Storage Pallet Shelving and Racking Upright Roll Forming Machine for 80 / 90 / 100 / 120mm Upright Rack Profiles

    Ask Lasest Price
    Brand Name : TECHWELL
    Model Number : R90-120
    Certification : CE, ISO
    Delivery Time : 70 working days
    • Product Details
    • Company Profile

    Storage Pallet Shelving and Racking Upright Roll Forming Machine for 80 / 90 / 100 / 120mm Upright Rack Profiles

    Storage Pallet Shelving and Racking Upright Roll Forming Machine for 80 / 90 / 100 / 120mm Upright Rack Profiles

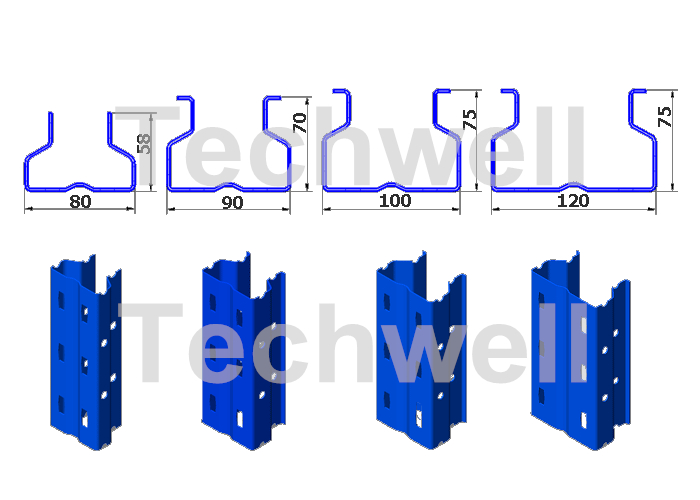

    A). Upright Rack Work Piece Profile Drawing


    A). Main Specifications


    1). 4 Ton Manual Uncoiler

    1. Machine frame: welding structure with shot lastingtreatment

    2. Components: Base, brake device, inner hole support, Expanding / tighten device

    3. Weight capacity of Decoiler: 4Ton Max

    4. Inner diameter of coil: 508mm

    2). 7 Roller Leveling Machine

    1. 2 Rollers pinch feeding, 7 rollers leveling
    2. leveling roller diameter: about Φ 90mm
    3. Leveling roller material: high grade 40Cr
    4. Heat treatment of leveling roller: surface Hi-frequency quench treatment
    5. Leveling motor power: 3KW

    3). Servo Feeding Machine

    1. Servo motor power: 3KW
    2. Servo motor brand: YASKAWA (JAPAN)
    3. To exact accurately feed the sheet into punching machine according to the set program

    4). JH21-80 Press Machine

    1. Model: JH21-80
    2. Punching Pressure: 80 Ton
    3. Punching Mould size: according to drawing
    4. Punching Mould: 1 set

    5). Main Upright Racking Roll Forming Machine

    1. Forming material thickness: 1.5-2.5mm
    2. Forming material type: GI
    3. Machine Frame: high grade steel welded and tempering treatment
    4. Forming Motor: 15KW
    5. Drive type: Gearbox Drive
    6. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)
    7. Shaft Diameter: Φ 75mm
    8. Bearing: HRB bearing ( Top Chinese brand )

    6). Hydraulic Cutting & Hydraulic Station

    1. Cutting type: Hydraulic Post-cutting after roll forming,
    2. When Cutting, Machine stop
    3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
    4. Hydraulic Station Power: 5.5KW

    7). PLC Control System

    1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
    2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

    8). Run-out Table

    1. Form: Steel welding structure, no-power exit rack
    2. Quantity:1 piece

    C). Layout of Cable Tray Forming Machine



    D). Main Components


    Components of Upright Rack Roll Forming MachineQuantity
    4 Ton Uncoiler1 Unit
    7 Rollers Leveling1 Unit
    Servo Feeding1 Unit
    JH21-80 Press Machine1 Unit
    Main Roll Forming Machine1 Unit
    Hydraulic Cutting1 Unit
    PLC Electrical Control Board1 Unit
    Hydraulic Stations1 Unit
    Run Out Table1 Unit

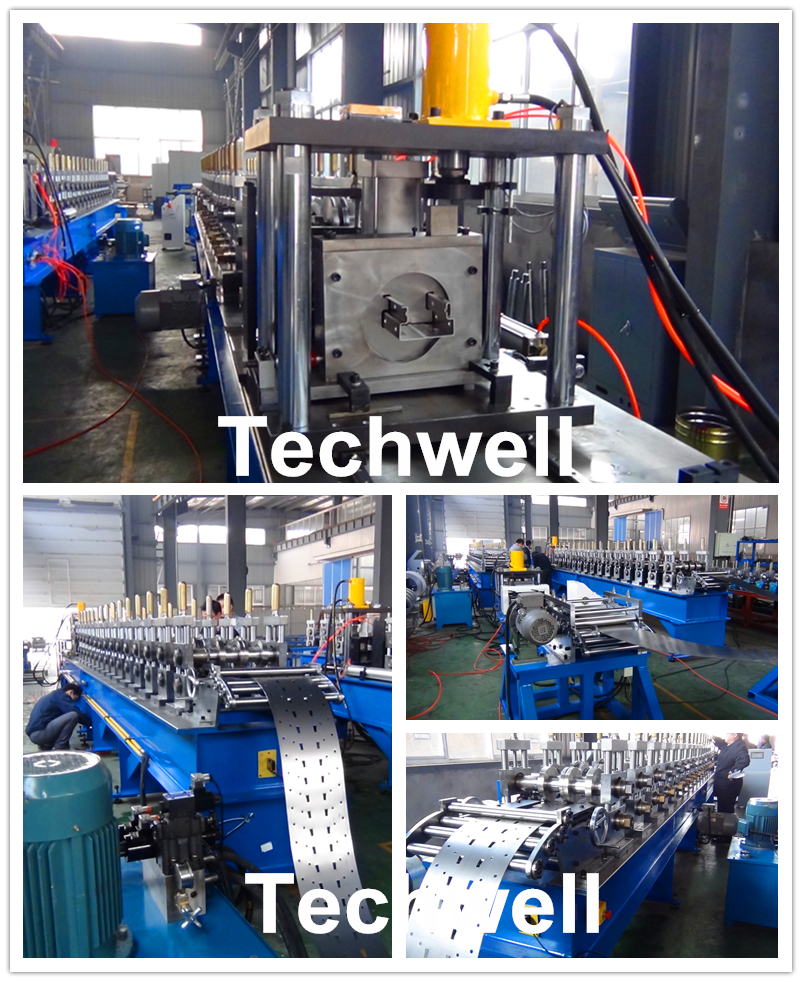

    E). More Photos of Upright Roll Forming Machine

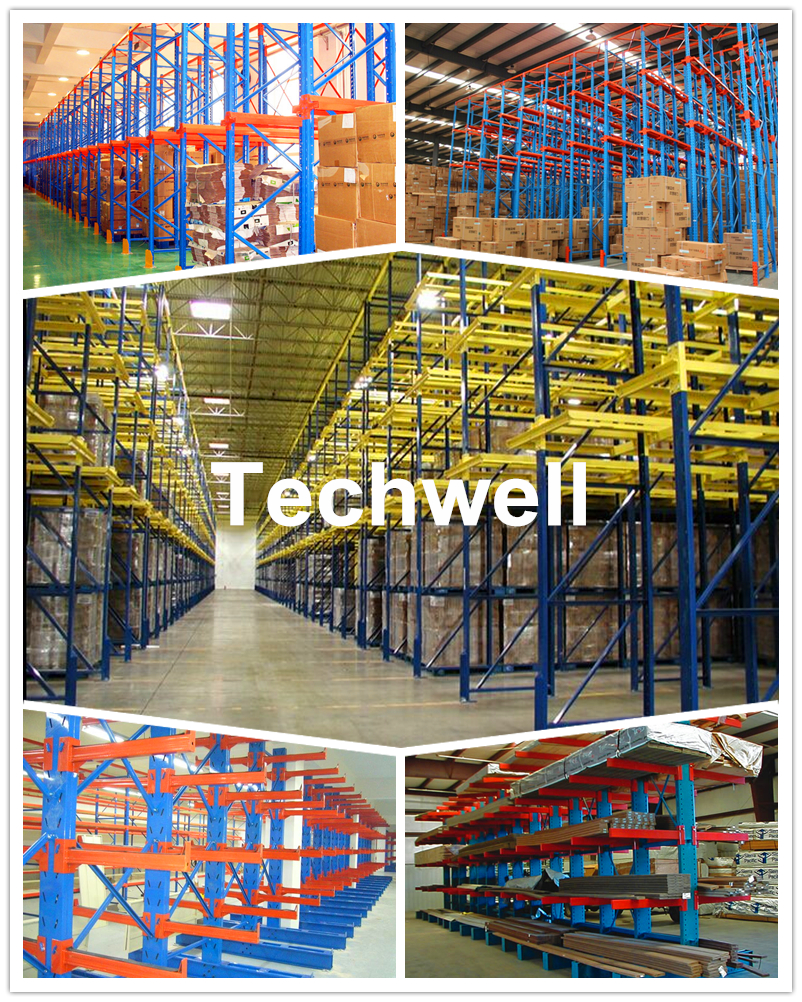

    F). Racking System



    G). Contacts of WUXI TECHWELL


    Company

    Wuxi Techwell Machinery Co., Ltd

    Wuxi Techwell Industrial Co., Ltd

    Websitewww.cold-rollformingmachine.com
    www.roofrollformingmachine.com
    www.wxtechwell.com
    Videowww.youtube.com/wxtechwell
    Tel / Fax0086-510-83133431
    Mobile / Whatsapp0086-18018304331 ( Monica )
    E-Mailmonica@wxtechwell.com
    Skypemonica198614
