6.3Mpa Pressure Of Hydraulic System Automatical / HydraulicDecoiler With 0-15m/min Forming Speed

Introduction of Automatical / Hydraulic Decoiler

A material handling machine located at the beginning of a process line used to hold and safely pay off or uncoil the steel strip. It controls the speed and direction of the strip of metal as it unwinds from the coil and is sent to the line for processing, such as slitting or tube mill entry.

Main Specifications of Automatical / Hydraulic Decoiler

• Active uncoiling, hydraulic to expand
• Weight capacity: 5/7/10/15 Ton
• Width of coil: 1500mm Max.
• Inner diameter: 508-610mm
• Outer diameter: 1300mm
• Material of main shaft: 40Cr
• Outline dimentision: about 3110x1650x1780mm
• Hydraulic motor power: 2.5KW
• Pneumatic damp pressing arm
• Uncoiling speed: 0-15m/min
• Capacity of hydraulic station: 40L
• Hydraulic system pressure: 6.3Mpa
• Coil car stoke: 2.5m
• Pressure of hydraulic system:6.3Mpa
• Weight of coil beared by car: 5-15 Ton
• Electrica condition 380V / 3Phase / 50HZ

Feature of Automatical or Hydraulic Decoiler

Competitive Advantages

1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

More Reference Machine Pictures

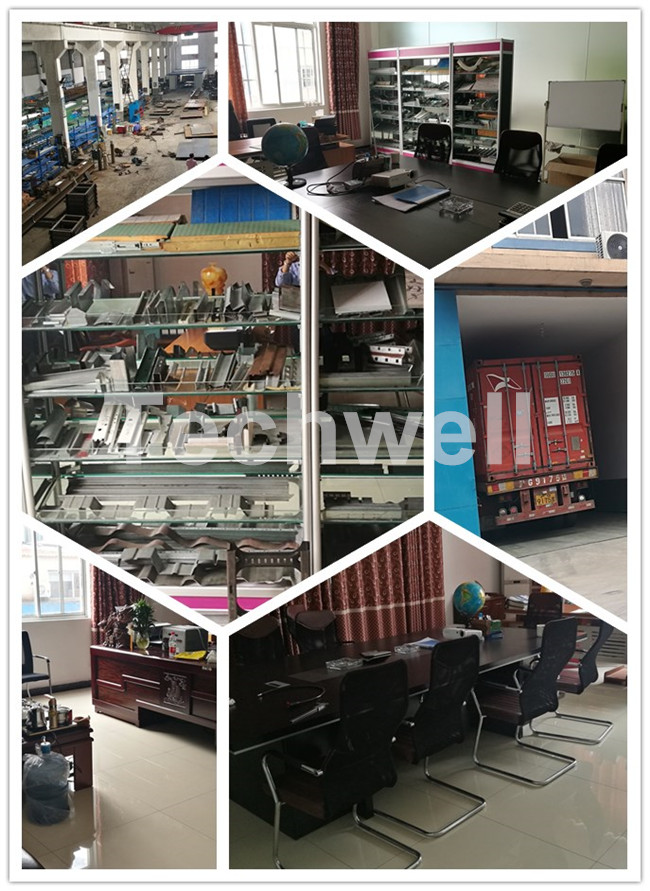

Our Factory Pictures

Contact Details

Wuxi Techwell Machinery Co.,Ltd is a professional manufacturer specializing in the developing and exporting of cold roll forming machines and insulated sandwich panel machines and Slitting cutting machines.

Roll Forming Machines: Metal roof & wall panel roll forming machine, steel tile roll forming machine, dual level roll forming machine, C/Z/U/L shaped steel roll forming machine, drywall stud and track roll forming machine, steel floor deck roll forming machine, highway guardrail roll froming machinem downspout roll forming machine, rainwater gutter roll forming machine, portable downspout / gutter machines, door frame roll forming machine, roller shutter door roll forming machine, no-girder k span arched panel roll forming machine, slitting & cutting, roof curving machine, stacker machine and so on.

Insulated Sandwich Panel Machines: PU sandwich panel machine, rubber belt pu sandwich panel machine, continuous pu sandwich panel machine, EPS sandwich panel machine, rockwool sandwich panel machine, eps & rockwool sandwich panel machine, mineral wool sandwich panel machine and so on.

Wuxi Techwell engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old customers. In paticular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, through design and installation. Our goal is " Future by heartiness, faith leads to the world".

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
