Galvanized Steel Sheet Square Rainwater Downpipe Roll Former For 80mm, 100mm Or 120mm Coil Width

Descrition of Rainwater Downpipe Roll Former

Main Technical Parameters of Downpipe Roll Former

1. ​Material Thickness: 0.4-0.8mm
2. Decoiler: Manual or hydraulic decoiler
3. Weight capacity of decoiler: 3T
4. Main motor power: 7.5Kw
5. Forming stations: about 20 stations
6. Forming speed: 0-15m/min
7. Machine weight: about 12T
8. Machine frame by 350H Beam welding
9. Machine structure: wall board panel
10. Axis diameter: 70mm
11. Drive: Chain transmission
12. Roller material: 45# forge steel, polished and coated with 0.05mm hard chrome surface
13. Axis material: High grade 45# steel
14. Cutting: Hydraulic cutting
15. Hydraulic power: 5.5Kw
16. PLC: PANASONIC Brand

Working Flowing

Decoiler--> Coil sheet guiding and feeding --> Roll forming machine with safty guard--> Tighten Device ->

Cut to length --> Out-put Table --> Curving machine

Main Components

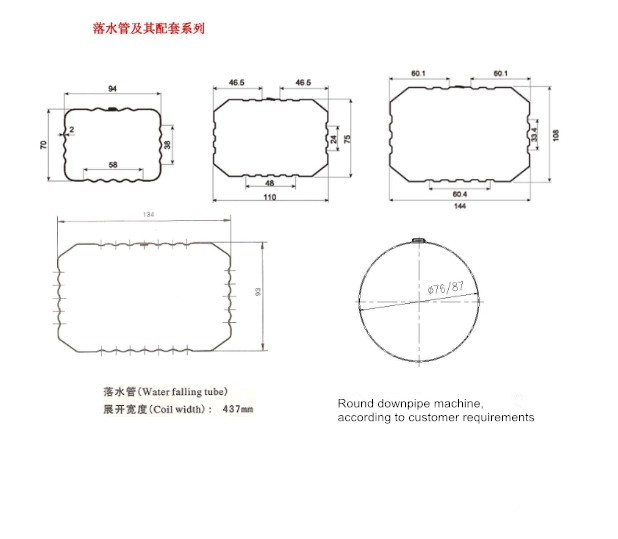

Downpipe Roll Former Reference Drawing

Applications

Rainwater downpipe, downspout, rainspout, water pipe, drainpipe

Competitive Advantaegs

1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

More Machine Reference Pictures
