Automatic PLC Frequency Control Aluminium Corrugated Profile Roll Forming Machine, Corrugated Sheet Making Machine

Feature of Corrugated Profile

• The corrugated sheet roll forming machine is designed to manufacture high quality corrugated sheet, and the finished product has smooth and exquisite appearance. The corrugated sheet is widely used to build up roofs of industrial and civilian buildings, such as workshop, warehouse, hangar, gymnasium, theatre, engine house, exhibition hall, etc. In addition, this machine can be particularly designed when relevant drawings are provided.
• The Corrugated Panel Sheet Roll Forming Machine is with fully automatic control system with PLC.
• ​Length, quantity of sheets is adjustable.
• ​​1 Year warranty, lifelong time service.
• We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.

Main Technical Parameters of Corrugated Profile Forming Machine


1. Coil Material

• Thickness of Coil Sheet: 0.3-0.8mm
• Coil Width: Custom-made, 1000mm or 1200mm or 1250mm
• Yield Strength: 250-350 Mpa
• Material: PPGI, Color Steel, GI.

2. Decoiler / Uncoiler

• ​Decoiler Type: Manual or Hydraulic or Auto Type
• Coil Width: Max. 1250mm
• I.D: 508-610mm
• O.D: Max. 1500mm

3. Corrugated Sheet Roll Forming Machine

• Forming Stations: 16-18 Stations ( Depend on Profiles )
• Roller Material: 45# steel, surface coated with 0.05mm hard chrome
• Diameter of Shaft: 76mm
• Shaft Material: High grade 45# steel
• Drive Type: Chain transmission
• Forming Speed: 0-15m/min
• Main Power: 5.5KW

4. Cutting to Length Device

• ​Cutting Type: Hydraulic cutting
• Cutting Die Material: Cr12Mov steel, HRC58-62
• Cutting Power: 3KW
• Cutting Tolerance: 10m+/-1.5mm
• Encoder: OMRON Brand

5. PLC Electrical Control Box

• ​PLC: PANASONIC Brand
• Inverter: YASKAWA Brand
• Touch Screen: PANASONICE
• Operation Type: Touch screen & Button

6. Hydraulic Station

• Hydraulic Station: Famous Chinese brand

7. Support Tables

• Table Type: Simple nonpower type
• Function: To support the finished corrugated panels

Main Components of Corrugated Profile

Working Flowing

Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table



Corrugated Profile Drawing






Applications

Corrugated Sheets, Sinusoidal corrugated sheets, Galvanised Corrugated Sheets, Wall Panel Roof Profile, Metal roof wall cladding, roof wall panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

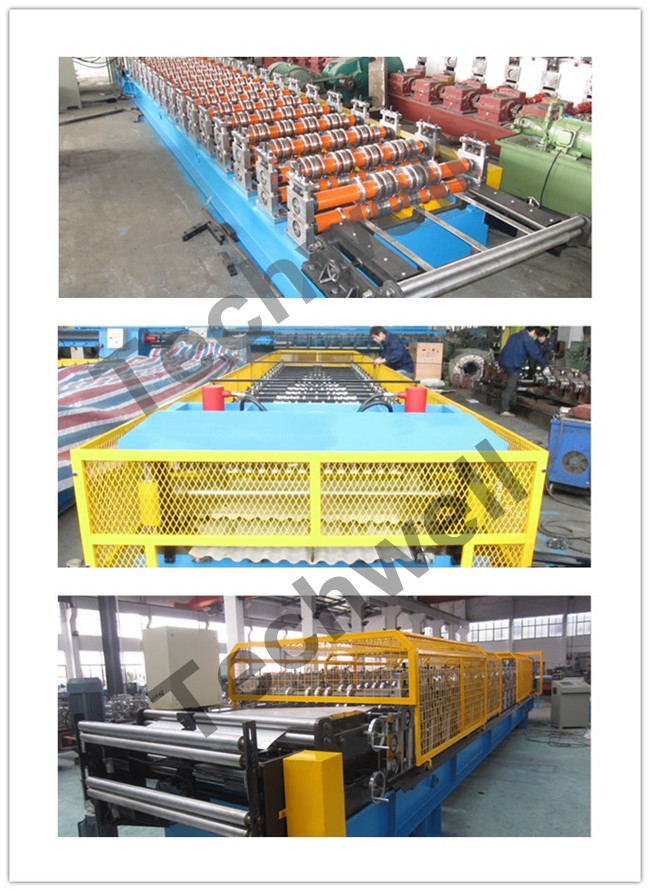

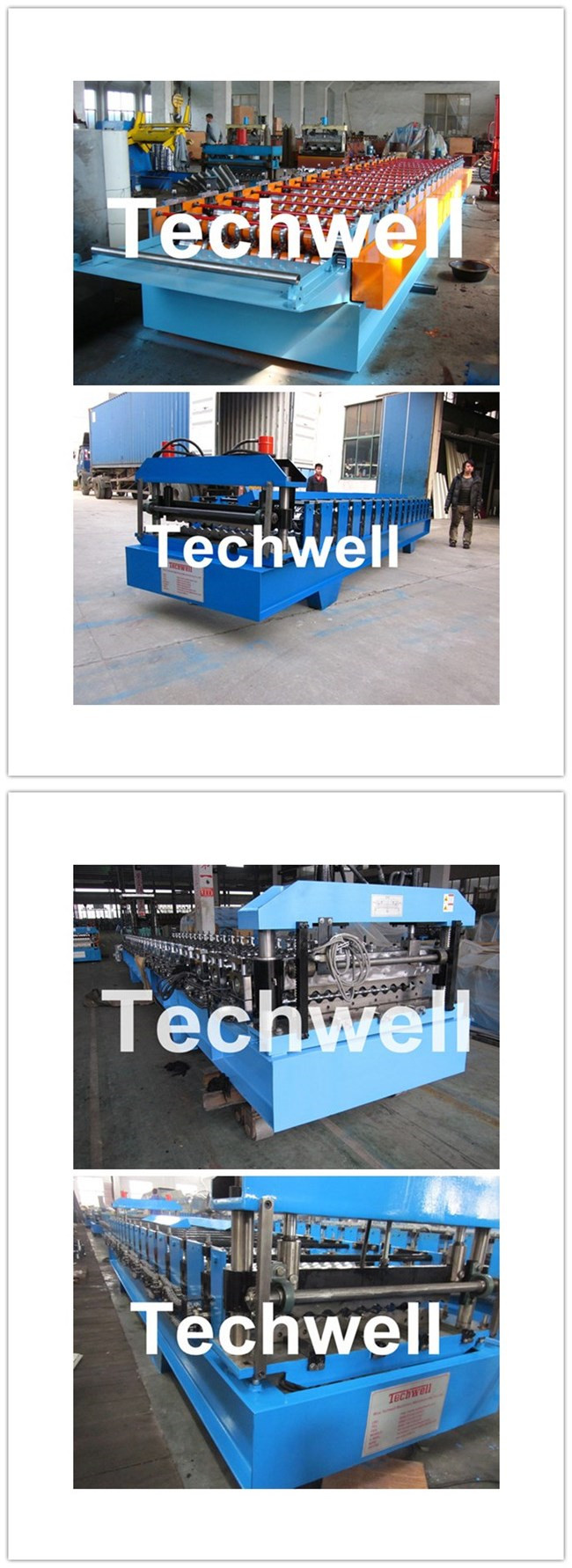

Photos of Corrugated Profile Roll Forming Machine
