K Span Roof Panel Roll Forming Machine For Coil Width 914mm, 17.7kw Capacity Power

Descriptions

​

Main Specifications of K Span Roof Panel

1. Material of the profile: G.i or Cabon steel

2. Thickness of sheet: 0.8-1.2mm

3. Coil width: 914mm

4. Effective width: 610mm

5. Mounting dimension: 8900mmx2250mmx2300mm

6. Total weight: about 13 Ton

7. Control system: electric control

8. Main motor power: 17.7KW

9. Forming Power is 7.5KW

10. Curving motor power: 4KW

11. Electric cutting motor power: 4kw

12. Conical Power is 2.2KW

13. Material of rollers: 45# steel, quenched HRC58-62

14. Material of shaft: 45# steel, adjusted

15. Material of cutting blade: Cr12 steel

16. Quenching hardness: HRC58-60

17. Forming Stations: 13 steps

Profile Drawing

Working Flow

Decoiling—feeding—roll forming—-cut to length—product packing manual—arching—seaming

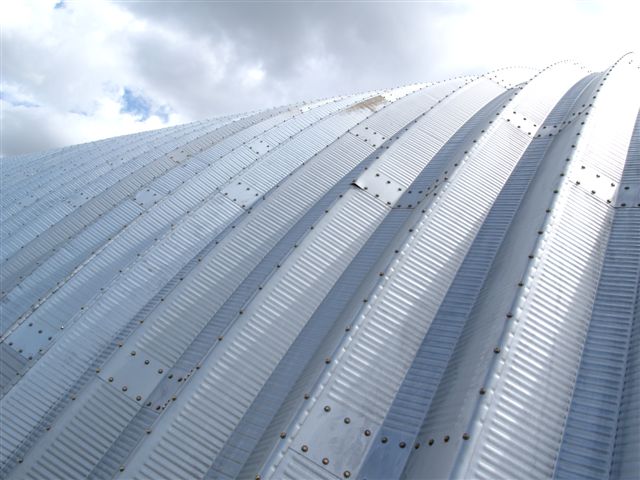

Finished Products

Our Advantages

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

Machine Pictures
