Galvanized Steel Large Span Roll Forming Machine For Arched Roof Panel With PLC Touch Screen Control

Main Specifications

• Thickness of Sheet: 0.8-1.5mm
• Coil Width: 914mm
• Mounting Dimension: 8900mmx2250mmx2300mm
• Control System: Electric Control
• Main Motor Power: 17.7Kw
• Forming Power: 7.5Kw
• Curving Motor Power: 4Kw
• Electric Cutting Motor Power: 4Kw
• Conical Power: 2.2Kw
• Material of Rollers: 45# steel, quenched HRC58-62
• Shaft Material: 45# steel, adjusted
• Material of Cutting Blade: Cr12Mov steel, quench HRC58-62
• Cutting Length Tolerance: +/-1mm
• Roller Station: 13
• Generator Power: 30Kw
• Supply Power: 380V, 5Hz,3Phase

Descriptions

Large-span forming machine is comprised of decoiler, forming machine, huydraulic cutting device, electic control system, hydraulic station, Generator fand unloading rack. All parts are mounted on a mobile trailer. So it is suitable for site working.

Working Flow

Decoiling—feeding—roll forming—-cut to length—product packing manual—arching—seaming

Profile Drawing

Applications

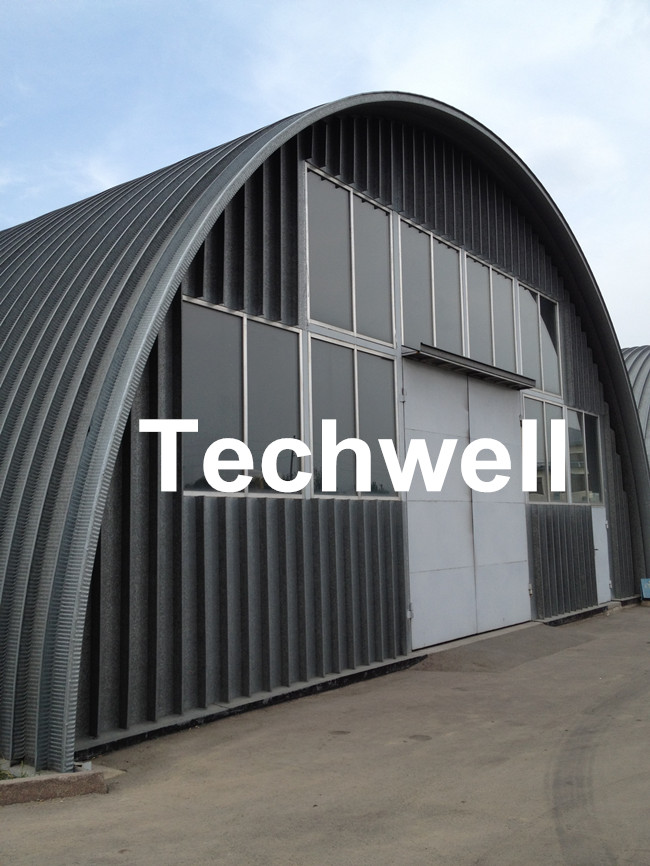

K Span arched roof, k span roofing, large span roof, no-girder roof panel

Our Advantages

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

Factory Pictures

Contact Details

Wuxi Techwell Machinery Co.,Ltd is a professional manufacturer specializing in the developing and exporting of cold roll forming machines and insulated sandwich panel machines and Slitting cutting machines.

Roll Forming Machines: Metal roof & wall panel roll forming machine, steel tile roll forming machine, dual level roll forming machine, C/Z/U/L shaped steel roll forming machine, drywall stud and track roll forming machine, steel floor deck roll forming machine, highway guardrail roll froming machinem downspout roll forming machine, rainwater gutter roll forming machine, portable downspout / gutter machines, door frame roll forming machine, roller shutter door roll forming machine, no-girder k span arched panel roll forming machine, slitting & cutting, roof curving machine, stacker machine and so on.

Insulated Sandwich Panel Machines: PU sandwich panel machine, rubber belt pu sandwich panel machine, continuous pu sandwich panel machine, EPS sandwich panel machine, rockwool sandwich panel machine, eps & rockwool sandwich panel machine, mineral wool sandwich panel machine and so on.

Wuxi Techwell engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old customers. In paticular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, through design and installation. Our goal is " Future by heartiness, faith leads to the world".

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
