    2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission

    Ask Lasest Price
    Brand Name : TECHWELL
    Model Number : TW-RACK
    Certification : CE
    Price : Contact us
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 10sets
    Delivery Time : 100-120 working days
    • Product Details
    • Company Profile

    2.0mm Galvanized Steel Cable Tray Roll Forming Machine With Panasonic PLC Touch Screen , Chain Transmission

    2.0mm Galvanized Steel Cable Profile Forming Machine With Panasonic PLC Touch Screen, Chain Transmission

    Main Specifications of Cable Profile

    Raw MaterialMaterialQ235 cold rolled strip or Hot-dip Galvanizing stee strip
    Thickness2.0mm
    Yield StrenghQ235
    ProductionProfile SectionDepend on Customer's Requirement
    Roll Forming MachineRoller MaterialGCr15 steel, quench HRC58-62
    Shaft Material45# Advanced steel
    Cutting Blade MaterialCr12Mov
    Working Speed0-10m/min
    Forming StationsAbout 16 steps
    PunchingDepend on hole sizeInterchangeable Die
    Drive TypeChain Drive or GearboxDepend on customer's requirement
    CuttingHydraulic cutting
    Electrical ControlPLCPANASONIC Brand
    InverterYASKAWA Brand
    Touch ScreenPANASONICE
    Operation TypeTouch screen & Button
    Hydraulic StationHydraulic StationFamous Chinese Brand
    Run out TableTable TypeSimple nonpower type
    FunctionTo support the finished panels



    Working Flow of Cable profile

    Auoto Decoiler – Tranporting & 9 Rollers Leveling – Servo Feeding -- 100 Ton Punching machine -- Oriented – Transportation – 8 Holes Punching -- Main Forming -- Cutting -- Run out table




    Main Components

    • Decoiler / Uncoiler ---------------------------------------------- 1 Unit
    • Leveling ----------------------------------------------------------- 1 Unit
    • Servo Feeding Device-------------------------------------------1 Unit
    • Hydraulic Punching-----------------------------------------------1 Unit
    • Main roll forming machine ------------------------------------- 1 Unit
    • Hydraulic cutting device ---------------------------------------- 1 Unit
    • Hydraulic Station ------------------------------------------------- 1 Unit
    • PLC computer control ------------------------------------------- 1 Unit
    • Output table ------------------------------------------------------- 1 Unit



    Cable Profile Drawings





    Out Put Table Products






    Applications


    Cable tray, cable ladder, cable profile, tray profile, cable tray profile, cable ladder profile


    Our Advantages

    • High Quality
    • Reliable
    • Durable
    • Reasonable Price
    • Good after Service
    • 1 Year Warranty
    • More Than 10 Years Experience

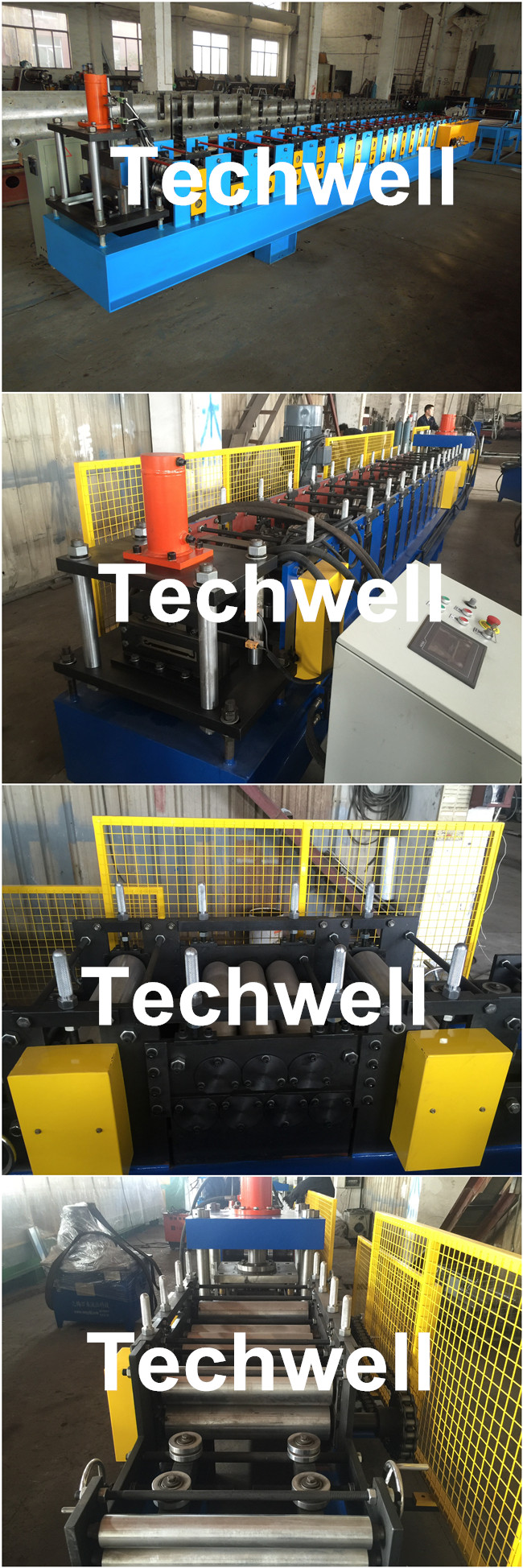

    More Machine Pictures of Cable profile
