Steel CZ Shaped Purlin Roll Forming Machine with 16 Main Rollers Forming Stations for CZ Purlin Sheet

One machine can produce different C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers, spacers. In the process, machine adopt automatic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc data. The roller for C & Z are changed very quickly without dismantle any parts.

B). Working Flow

Decoiler --- Feeding & Leveling Device --- Punching --- Cutting --- Main Forming --- Rectify Device --- Run out table

C). Components

1. Decoiler -------------------------------------------- 1 Unit
2. Feeding & Leveling -------------------------------- 1 Unit
3. Hydraulic punching device ------------------------ 1 Unit
4. Hydraulic cutting device --------------------------- 1 Unit
5. Main roll forming machine ------------------------- 1 Unit
6. Hydraulic Station ----------------------------------- 1 Unit
7. PLC computer control ------------------------------ 1 Unit
8. Output table ---------------------------------------- 1 Unit

D). Applications

Steel cz purlins, c/z purlins, steel structuere cz purlin, metal cz purlins

E). Competitive Advantages

High Quality

Reasonable Price

Good after Service

1 Year Warranty

More Than 10 Years Experience

Simple to operate when assemble

Easy to handle the products

Direct manufacturer, provide with high quality and best price.

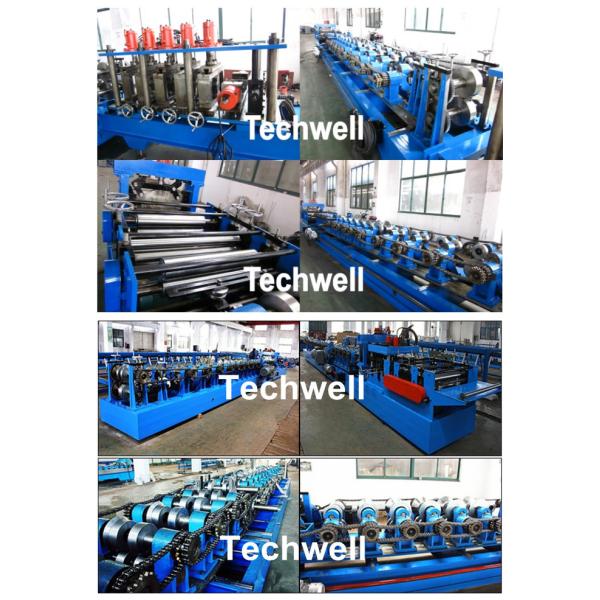

F). Reference Pictures

Wuxi Techwell Machinery Co.,Ltd is a professional manufacturer specializing in the developing and exporting of cold roll forming machines and insulated sandwich panel machines and Slitting cutting machines.

Roll Forming Machines: Metal roof & wall panel roll forming machine, steel tile roll forming machine, dual level roll forming machine, C/Z/U/L shaped steel roll forming machine, drywall stud and track roll forming machine, steel floor deck roll forming machine, highway guardrail roll froming machinem downspout roll forming machine, rainwater gutter roll forming machine, portable downspout / gutter machines, door frame roll forming machine, roller shutter door roll forming machine, no-girder k span arched panel roll forming machine, slitting & cutting, roof curving machine, stacker machine and so on.

Insulated Sandwich Panel Machines: PU sandwich panel machine, rubber belt pu sandwich panel machine, continuous pu sandwich panel machine, EPS sandwich panel machine, rockwool sandwich panel machine, eps & rockwool sandwich panel machine, mineral wool sandwich panel machine and so on.

Wuxi Techwell engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old customers. In paticular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, through design and installation. Our goal is " Future by heartiness, faith leads to the world".

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
