Quick Interchangeable CZ Purlin Roll Forming Machine With Plc Touch Screen Control System, Thickness 1.0-3.0mm

Main Specification

1. One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
2. C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
3. This line main forming drive adopt reducer motor and frequency conversion control, speed control…
4. It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min

Work Flowing

Application

Steel cz purlins, c/z purlins, steel structuere cz purlin, metal cz purlins

Profile Drawing

Main Componenets

1. Decoiler -------------------------------------------- 1 Unit
2. Feeding & Leveling -------------------------------- 1 Unit
3. Hydraulic punching device ------------------------ 1 Unit
4. Hydraulic cutting device --------------------------- 1 Unit
5. Main roll forming machine ------------------------- 1 Unit
6. Hydraulic Station ----------------------------------- 1 Unit
7. PLC computer control ------------------------------ 1 Unit
8. Output table ---------------------------------------- 1 Unit

Advantages

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

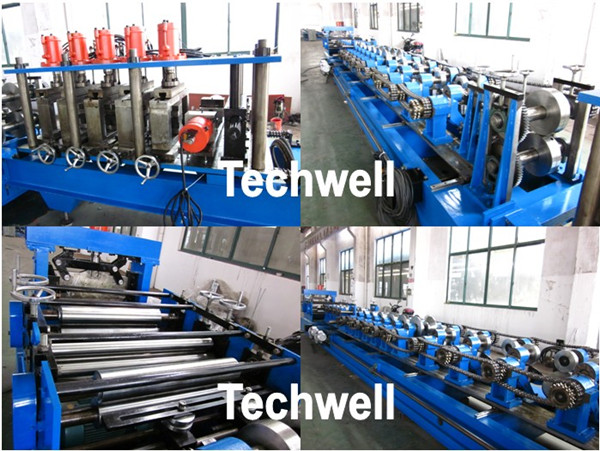

Machine Pictures
