    Chain Drive Roof Tile Making Machine With Touch Screen PLC Frequency Control System

    Ask Lasest Price
    Brand Name : TECHWELL
    Model Number : TW-GTM
    Certification : CE
    Price : Contact Us
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 sets
    Delivery Time : 55-65 working days
    • Product Details
    • Company Profile

    Chain Drive Roof Tile Making Machine With Touch Screen PLC Frequency Control System

    Chain Drive Roof Tile Making Machine With Touch Screen PLC Frequency Control System


    Main Specification


    PLC Frequency Control Metal Roof Tile Making Machine For Material Thickness 0.3-0.6mm
    MaterialThickness0.3-0.7mm
    Coil WidthCustomized, 1000mm or 1200mm or 1250mm
    Yield Strength250-300 Mpa
    MaterialPPGI,Color Steel,GI
    Decoiler/UncoilerUncoiler TypeManual or Hydraulic or Auto Type
    Coil WidthMax. 1250mm
    I.D508-610mm
    O.DMax. 1500mm
    Tile Roll Forming MachineForming Stations13-18 Stations ( Depend on Profiles )
    Roller material45# steel, surface coated with 0.05mm hard chrome
    Diameter of shaft76mm
    Shaft materialHigh grade 45# steel
    Drive typeChain transmission
    Forming speed0-15m/min
    Main power5.5KW
    Cutting DeviceCutting typeHydraulic cutting
    Cutting Die MaterialCr12Mov steel, HRC58-62
    CuttingTolerance10m+/-1.5mm
    EncoderOMRON Brand

    Product Description


    • This Glazed Tile Roll Forming Machine can rollform metal roof tiles. After roll formed by this glazed roof tile roll forming machine, the surface of metal roof glazed tile is very smooth and beautiful without any scratch on the surface of tile profile sheets.
    • The Steel Glazed Roof Tile Roll Forming Machine is with fully automatic control system with PLC.
    • Length, quantity of sheets is adjustable.
    • Rollforming process: Decoiler, Rollforming, Pressing & Cut to length.
    • Easy operation: Key in the length and quantity on the control panel.
    • 1 Year warranty, lifelong time service.

    Work Flowing


    Decoiler ---> Fedding Guide ---> Roll Forming ---> Pressing ---> Cut-to-length ---> Run out table


    Application


    Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding


    Advantages


    • High Quality
    • Reasonable Price
    • Good after Service
    • 1 Year Warranty
    • More Than 10 Years Experience
    • Copra designing software

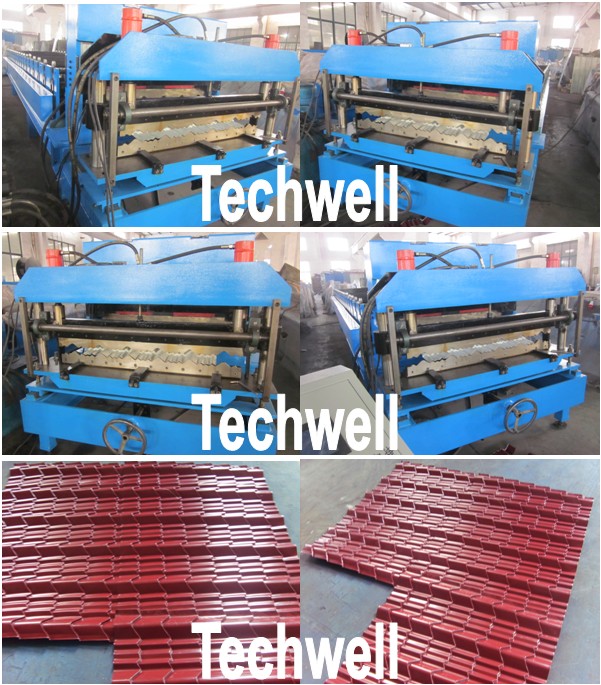

    Machine Pictures
