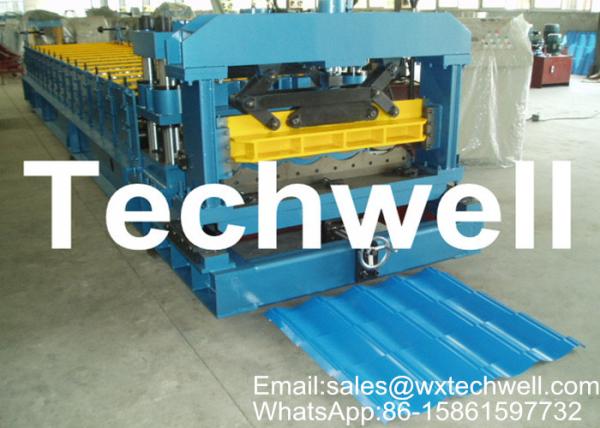

    0 - 15m / min Forming Speed Roof Tile Making Machine 0.4 - 0.6mm Material Thickness

    Ask Lasest Price
    Brand Name : TECHWELL
    Model Number : TW-GTM
    Certification : CE
    Price : Contact Us
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 Sets
    Delivery Time : 55-65 working days
    • Product Details
    • Company Profile

    0 - 15m / min Forming Speed Roof Tile Making Machine 0.4 - 0.6mm Material Thickness


    0 - 15m/min Forming Speed Roof Tile Making Machine With 0.4 - 0.6mm Material Thickness


    A). Main Specification


    • Material Thickness: 0.4-0.6mm,Color Steel, Galvanised coil
    • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05m Chrome Surface.
    • Forming Speed: 0-15m/min (Not including cutting)
    • Material Width: Depend on customer's requirement
    • Axis Diameter: ¢ 75mm
    • Working Station: 13-22 Stations (depend on profile drawing)
    • Axis Material: High grade 45#, quenched and heat treatment.
    • Cutting System: Hydraulic Cutting
    • Material of Blade Mould: Cr12, Quenched 58-62
    • Machine Frame stand: Welded structural steelThickmess of Fame Steel: 18mm

      Electrical ControlPLC Frequency Control System with touch screen
      PLCPANASONIC Brand
      EncoderOMRON Brand
      InverterYASKAWA BrandThickmess of Fame Steel: 18mm
      Electrical ControlPLC Frequency Control System with touch screen

    B).Work Flowing


    Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table


    C).Main Components

    • Decoiler --------------------------------- 1 Unit
    • Main roll forming machine ------------------------ 1 Unit
    • Hydraulic cutting device --------------------------- 1 Unit
    • Hydraulic Station ----------------------------------- 1 Unit
    • PLC computer control ------------------------------ 1 Unit
    • Output table ---------------------------------------- 1 Unit

    D). Application


    Glazed tile; Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile;


    E). Advantages


    • High Quality
    • Reasonable Price
    • Good after Service
    • 1 Year Warranty
    • More Than 10 Years Experience

    ​F). Reference Pictures
