Chain Transmission Top Hat Profile Cold Roll Forming Machine With 15 Roll Stations

Main Descriptions of Hat Channel Roll Former

Hat Channel Profile Drawing / Finished Sample Piece

Main Tehchnical Specifications

1). Thickness of sheet: 1.5-3.0mm

2). Material: GI, Carbon steel

3). Decoiler Type: Passive type decoiler, or customized

4). Weight capacity of decoiler: Max. 5T

5). Feeding rollers: 4 rollers

6). Leveling rollers: 7 rollers (upper 3 rollers, lower 4 rollers)

7). Forming stations: 14 stations (Depend on profiles)

8). Roller material: GCr15 steel, quenched and heated process HRC58-62

9). Shaft diameter: Φ 80mm

10). Shaft material: 45# high grade steel tempering treatment

11). Drive type: Chain transmission

12). Forming Speed: about 0-15m/min (excluding cutting time)

13). Main power: 15KW

14). Cutting type: Hydraulic cutting

15). Cutting blade: Cr12Mov, quenched

16). Cutting tolerance: 10m+/-1.5mm

17). Hydraulic power: 7.5KW

18). PLC: PANASONIC brand

Main Components

• Decoiler / Uncoielr ------------------------------------------------- 1 Unit
• Pinch Feeding & Leveling ---------------------------------------- 1 Unit
• Main roll forming machine -----------------------------------------1 Unit
• Hydraulic cutting device ------------------------------------------- 1 Unit
• Hydraulic Station ---------------------------------------------------- 1 Unit
• Electrica Control Board -------------------------------------------- 1 Unit
• Output table ---------------------------------------------------------- 1 Unit

Applications

Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...

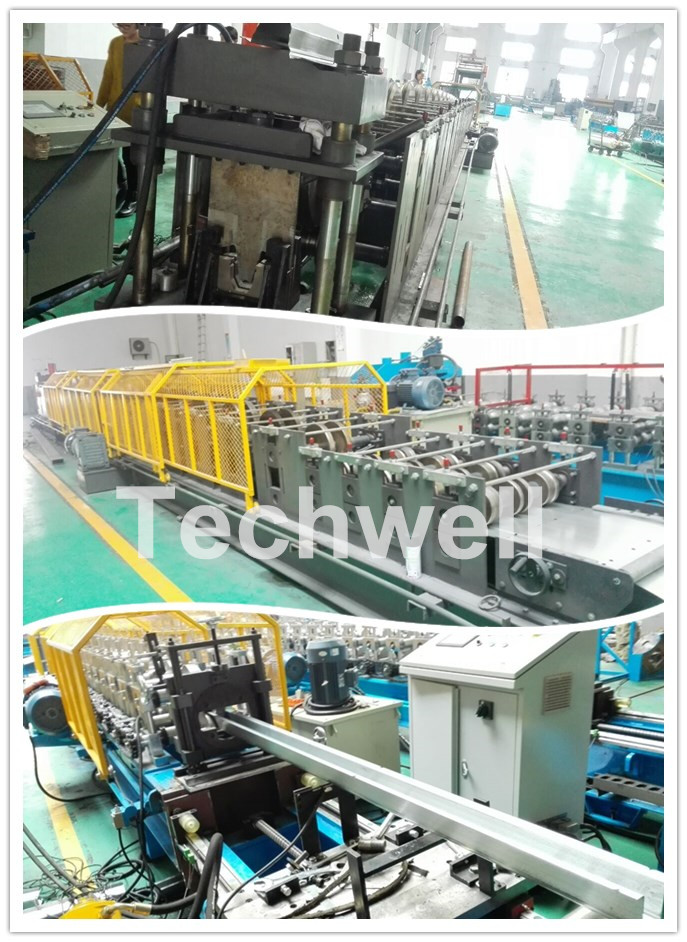

More Machine Photos
