Step Beam Cold Roll Forming Machine With Welding Line, Servo Flying Saw Cutting Device

Main Technical Specifications

1). Coil material thickness: 1.5-2.5mm

2). Material: carbon steel, GI

3). Weight capacity of decoiler: Max. 5 Ton

4). Coil width: Max. 1500mm

5). 2 rollers pinch feeding

6). 7 rollers leveling (Upper 3 roller, lower 4 rollers)

7). Machine frame stand: Welded structure steel

8). Forming motor: about 15KW

9). Shaft diameter:Φ 80mm

10). Shaft material: 45# high grade steel tempering treatment (HB220-260)

11). Roller material: GCr15 steel, quenched and heated process HRC58-62

12). Drive type: Chain transmission

13). Forming Speed: about 0-15m/min (excluding cutting time)

14). Forming stations: about 24 staitons

15). The rectangular tube is sealed by spot welding.

16). Cutting type: Servo flying saw cutting

17). Servo power: 3.0KW

18). Cutting power: 4KW

19). Cutting tolerance: 10m+/-1.5mm

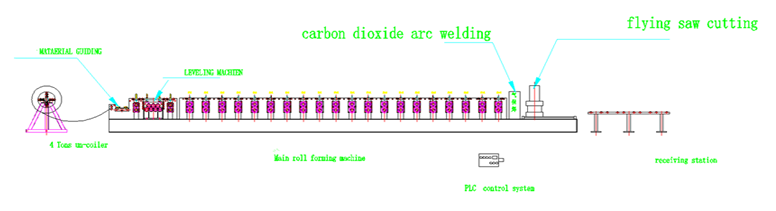

Working Flow Chart

Decoiler → Feeding Guide → Leveling → Main Roll Forming → Carbon Dioxide Arc Welding → Flyign Saw

Cutting → Support Table

Main Components

Reference Profile Drawing

Competitive Advantages

1. High Quality
2. Good after Service
3. 1 Year Warranty
4. More Than 10 Years Experience
5. Simple to operate when assemble
6. Easy to handle the products
7. Direct manufacturer, provide with high quality and best price.
