High Productivity Z Shaped Roll Forming Machine With 0-15m/min Forming Speed, Guiding Column Machine Structure

Z Purlin Roll Former Profile Drawing

Main Specifications

1. Coil material thickness: 1.5-3.0mm

2. Material: mild steel, GI

3. Weight capacity of decoiler: Max. 5 Ton

4. Coil width: Max. 1500mm

5. 2 rollers pinch feeding

6. 7 rollers leveling (Upper 3 roller, lower 4 rollers)

7. Leveling roller diameter: about Φ90mm

8. Motor power: about 4KW

9. Punching type: Hydraulic pre-punching type

10. Punching mould size: According to drawing

11. Hydraulic power: 11KW

12. Cutting type: Hydraulic pre-cutting

13. CuttingTolerance: +/-1.5mm

14. Encoder: OMRON Brand

15. Forming Stations: 16 Stations ( Depend on Profiles )

16. Roller material: GCr15 high grade steel ( HRC58-62 ), and roller surface with hard chrome ≥ 0.05mm

17. Diameter of shaft: Φ85mm

18. Shaft material: High grade 45# steel

19. Drive type: Chain transmission

20. Forming speed: 0-15m/min

21. Main power: 15KW

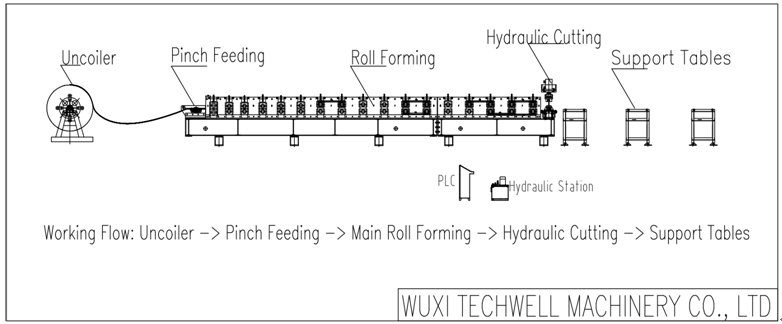

Working Flow Chart

Decoiler → Feeding Guide → Leveling → Main Roll Forming → Hydraulic Cutting → Support Table

Main Components

Competitive Advantages

1. High Quality
2. Good after Service
3. 1 Year Warranty
4. More Than 10 Years Experience
5. Simple to operate when assemble
6. Easy to handle the products
7. Direct manufacturer, provide with high quality and best price.
