Galvanized / Carbon Steel CZ Shaped Cold Roll Forming Machine For
0-15m/min Forming Speed
Summary of CZ Shaped Machine
1. One machine can produce different C/Z Purlins through automatic,
simple manual stepless adjustment, when to produce different
profiles, no need to change the forming rollers. In the process,
machine adopt automatic control model, it can auto punch, cut,
forming based on inputting length of purlin, portrait hole
distance, quantity, etc data. |
2. C/Z purlin roll former make up of decoiler, feeding, leveling, 2
sets hydraulic punching device, hydraulic cutting, speediness
interchangeable forming machine, PLC control system, hydraulic
stations, run-out tables. |
3. The whole machine adopt PLC control, AC speed control by
frequency inverter technology, to realize continuous auto
production, which is the best desired machinery in steel structure
and metal cold roll forming machinery industry. |
Main Technical Specifications
1. Coil material thickness: 1.5-3.0mm
2. Material: mild steel, GI
3. Weight capacity of decoiler: Max. 5 Ton
4. Coil width: Max. 1500mm
5. 2 rollers pinch feeding
6. 7 rollers leveling (Upper 3 roller, lower 4 rollers)
7. Leveling roller diameter: about Φ90mm
8. Motor power: about 4KW
9. Punching type: Hydraulic pre-punching type
10. Punching mould size: According to drawing
11. Hydraulic power: 11KW
12. Cutting type: Hydraulic pre-cutting
13. CuttingTolerance: +/-1.5mm
14. Encoder: OMRON Brand
15. Forming Stations: 16 Stations ( Depend on Profiles )
16. Roller material: GCr15 high grade steel ( HRC58-62 ), and roller surface with hard chrome ≥ 0.05mm
17. Diameter of shaft: Φ80mm
18. Shaft material: High grade 45# steel
19. Drive type: Chain transmission
20. Forming speed: 0-15m/min
21. Main power: 15KW
22. PLC: PANASONIC Brand or Custom-made
Main Components
| Decoiler | 1 Unit |
| Pinch Feeding | 1 Unit |
| 7 Rollers Leveling | 1 Unit |
| Hydraulic Pre-punching | 1 Unit |
| Hydraulic cutting device | 1 Unit |
| Main roll forming machine | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC computer control | 1 Unit |
| Output table | 1 Unit |

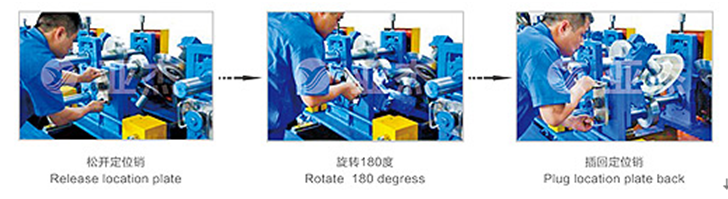

Pictures Show Quick Interchangeable CZ Purlin Roll Former
Reference Profile Drawing
Competitive Advantages
- High Quality
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
- Simple to operate when assemble
- Easy to handle the products
- Direct manufacturer, provide with high quality and best price.
