PU Cold Roll Forming Equipment , Roof Panel Roll Forming Machine PLC Electrical Control

Main Technical Specifications

• Raw Material: GI, PPGI
• Yield Strength: 250-350Mpa
• Material thickness: 0.3-0.8mm
• Material width: depend on customer’s requirement
• Decoiler Type: manual or automatical type ( depend on customer’s requirement )
• Main Motor Power: 7.5 Kw
• Hydraulic Motor Power: 4.0Kw
• Forming Station: 13-20 stations ( depend on profile drawing )
• Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
• Main Axis Material: High grade 45#, quenched and heat treatment.
• Axis Diameter: ¢ 75mm
• Working Speed: 0-15 m/min
• Transporting Type: Chain Transmission
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting
• Material Of Cutting Blade: Cr12Mov

Main Components

• Decoiler / Uncoiler-----------------------------------------------------------------------------1 Unit
• Feeding Guide---------------------------------------------------------------------------------1 Unit
• Main Roll Forming-----------------------------------------------------------------------------1 Unit
• Hydraulic Cutting Device---------------------------------------------------------------------1 Unit
• Hydraulic Station-------------------------------------------------------------------------------1 Unit
• PLC Computer Control Board---------------------------------------------------------------1 Unit
• Support Tables---------------------------------------------------------------------------------1 Unit

Working Flowing

Decoiler / Uncoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table

Competitive Advantages

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

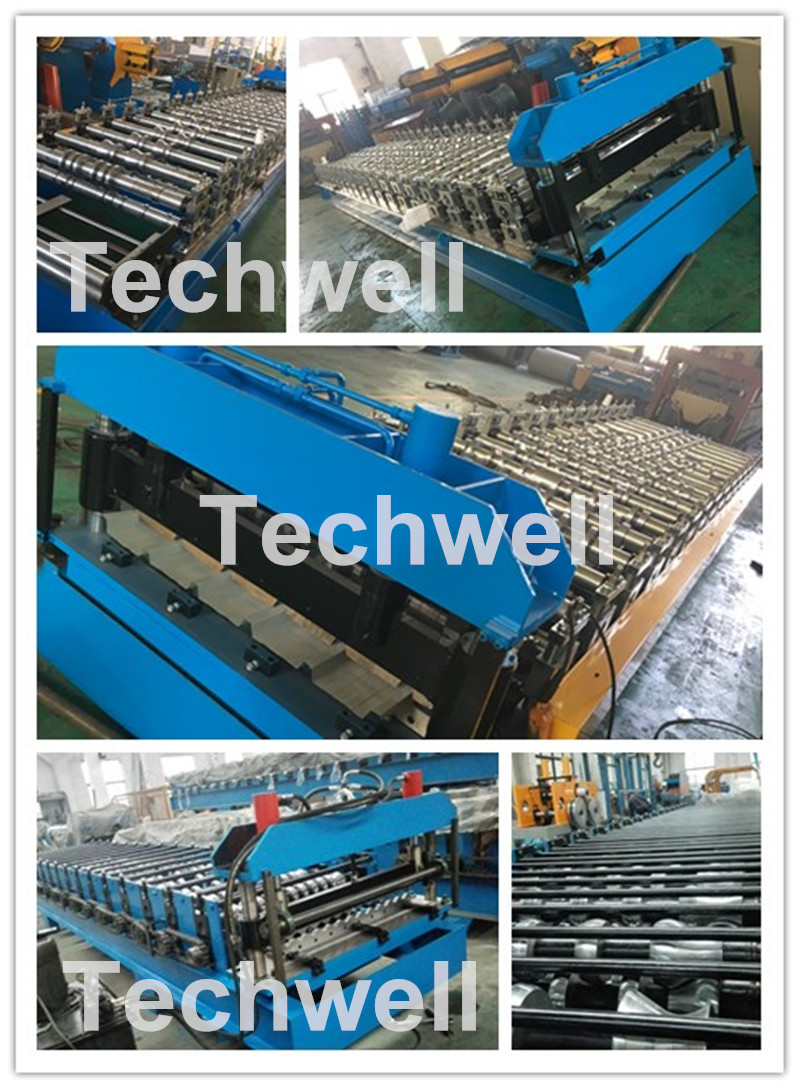

Machine Pictures

Factory Pictures
