PLC Frequency Control Solar Strut Profile Roll Forming Machine With 24 Roller Stations

Main Technical Specifications

1. Forming Material: GI
2. Forming Material Thickness: 1.0-2.5mm
3. Decoiler type: 3T manual decoiler
4. I.D: 508-610mm
5. Leveling device: 7 rollers type leveling (upper 3 rollers, lower 4 rollers)
6. Feedign type: Servo feeding
7. Servo motor power: 0.85KW
8. Punching type: Press machine type
9. Punching pressure: According to customer's requirements
10. Punching mould size: According to drawing
11. Punching Mould: 1 set
12. Punching power: 7.5KW
13. Shaft diameter: 70mm
14. Shaft material: 40Cr high grade steel tempering treatment (HB220-260)
15. Bearing: HRB bearing
16. Roller Material: GCr15 steel, HRC 58-62 and roller surface with hard chrome 0.05mm
17. Forming motor: 22KW
18. Forming stations: about 24 stations
19. Cutting type: Hydraulic post-cutting after roll forming
20. Cuttign blade material: Cr12Mov, Quench treatment, HRC58-62
21. Hydraulic power: 4.0KW
22. Hydrualic pressure: 15MPa
23. Cutting tolerance: +/-1.5mm
24. Electrical control: PLC frequency control

Main Components

Reference Profile Drawing

Competitive Advantages

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

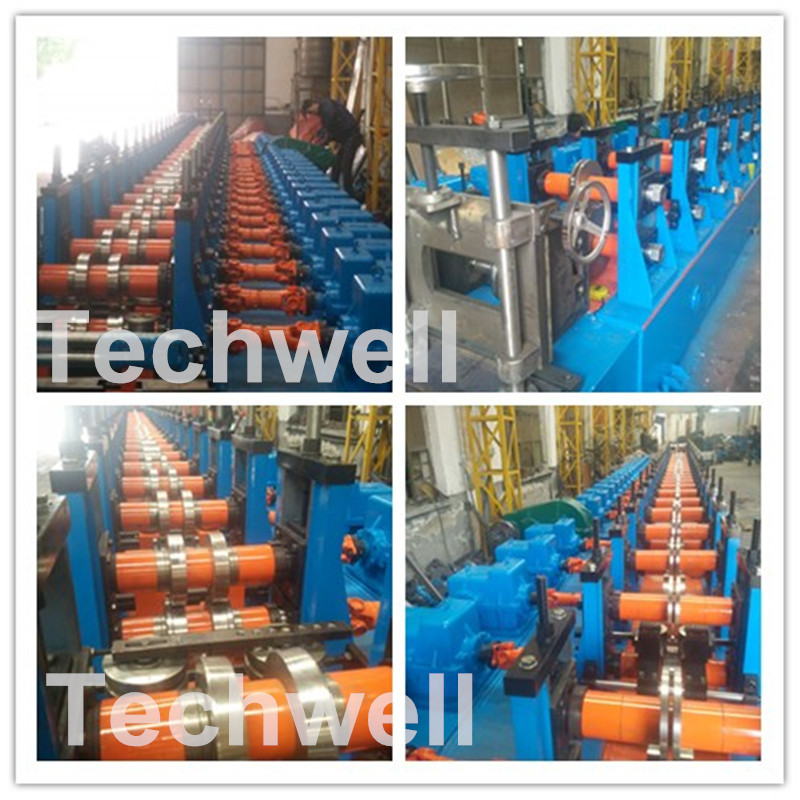

More Machine Pictures
