Iron Sheet Metal Roof Cold Roll Forming Machine With Manual Uncoiler Machine

Main Technical Specifications

1. Model: Roofing Sheet Profile for making the pu upper or lower panels

2. Material: Color Steel, Iron, G.I Coils

3. Material thickness: 0.3-0.8mm

4. Material width: depend on customer’s requirement

5. Decoiler Type: manual or automatical type ( depend on customer’s requirement )

6. Weight Capacity Of Decoiler: 5 Ton

7. Main Motor Power: 7.5 Kw

8. Hydraulic Motor Power: 4.0 Kw

9. 14 Forming Station( depend on profile drawing )

10. Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.

11. Main Axis Material: High grade 45#, quenched and heat treatment.

12. Axis Diameter: ¢ 75mm

13. Working Speed: 0-15 m/min

14. Transporting Type: Chain Transmission

15. Type of Cutting: Hydraulic cutting

16. Material Of Cutting Blade: Cr12Mov

17. Machine Frame stand: Welded structural steel

18. Electrical Control: PLC Frequency Control System with touch screen

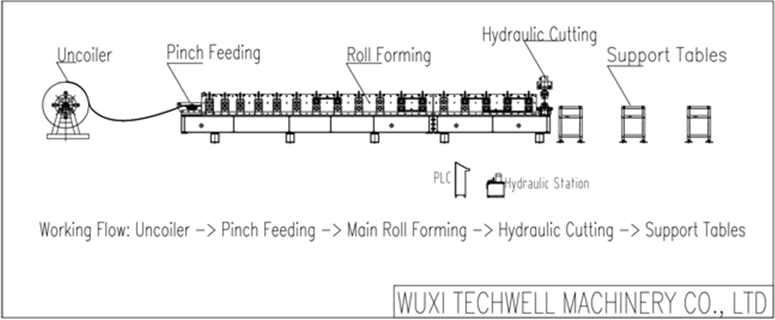

Working Flowing

Decoiler / Uncoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table

Main Components

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

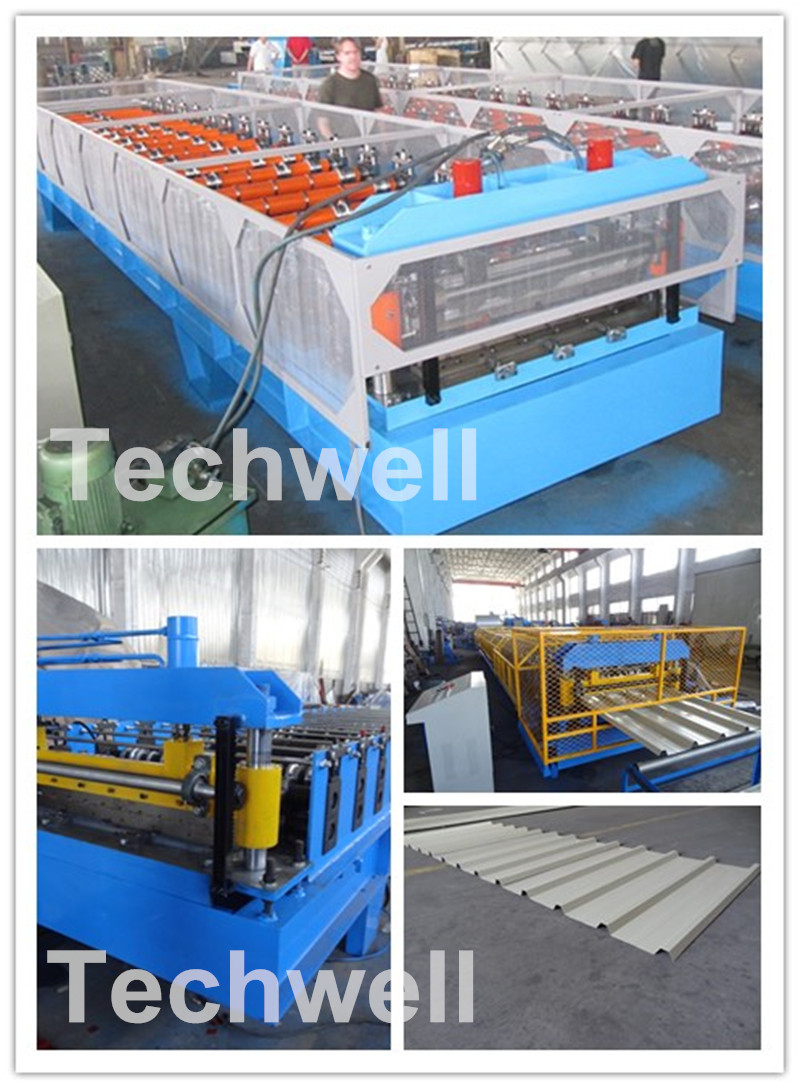

More Machine Pictures

Factory Pictures
