18 forming stations Auto Changeover Cable Tray Profile Forming Machine with PLC Electrical Control

Main Technical Parameters

1. Coil Material: GI or Carbon Steel

2. Forming material thickness: 1.0-2.5mm

3. Decoil Type: Hydraulic Decoiler

4. Electric releasing coil, hydraulic expanding, tension

5. I.D: 508, 610mm

6. O.D: Max. 1500mm

7. Leveling Device: 2 Rollers pinch feeding, 7 rollers leveling

8. Leveling roller diameter: about Φ 90mm

9. Leveling motor power: 4.0KW

10. Feeding Type: Servo Feeding

11. Servo motor power: 3KW

12. Punching Type: Punch Machine

13. Punching Die: Cr12 Mov, quenching process

14. Punching Die size: according to drawing

15. Punching Power: 15KW

16. Punching controlled by PLC

17. Cutting: Hydraulic pre-cutting

18. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

19. Hydraulic Station Power: 15KW

20. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

21. Shaft Diameter: Φ 85mm

22. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

23. Forming Station: 18 stations

24. Forming Speed: 0-15m/min

25. Forming Motor: 15KW

26. Size adjustment: electrical power adjustment

27. Drive type: Chain drive

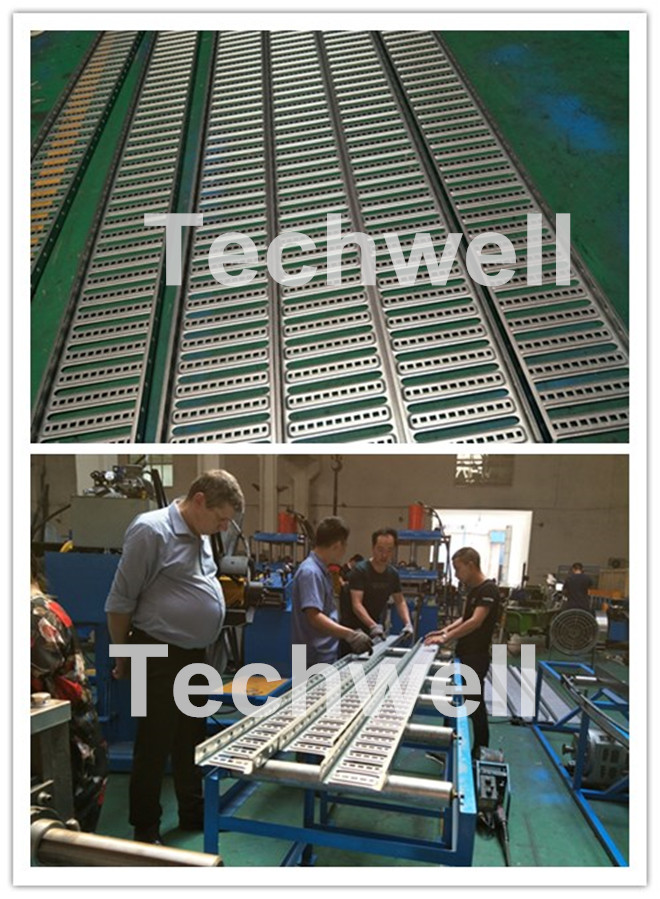

Sample Products Pictures

Main Components

• Hydraulic Decoiler --------------------------------------------------------- 1 Unit
• Leveling Device ------------------------------------------------------------ 1 Unit
• Servo Feeding -------------------------------------------------------------- 1 Unit
• Punching Machine ---------------------------------------------------------- 1 Unit
• Hydraulic Pre-Cutting -------------------------------------------------------1 Unit
• Main Roll Forming Machine ---------------------------------------------- 1 Unit
• PLC Electrical Control Board -------------------------------------------- 1 Unit
• Hydraulic Stations ---------------------------------------------------------- 1 Unit
• Run Out Table --------------------------------------------------------------- 1 Unit

Competitive Advantages

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience
