PLC Electrical Control Hat Profile Cold Roll Forming Machine With 1.5 Inch Chain Transmission

Main Technical Parameters

• Thickness of sheet: 1.5-3.0mm
• Coil width: Custom-made
• Material: GI, Carbon steel
• Decoiler / Uncoiler: Manual or hydraulic decoiler
• Machine Frame: High grade steel welded and tempering treatment
• Forming Structure: Guiding column
• Punching type: Hydraulic punching
• Punching die: Cr12Mov, quenched, HRC58-62
• Forming stations: 16 stations (Depend on profiles)
• Roller material: GCr15 steel, HRC58-62
• Diameter of shaft: 75mm
• Shaft material: High grade 45# steel
• Drive type: 1.5 inch chain transmission
• Forming speed: 0-15m/min
• Main power: 11KW
• Hydraulic power: 7.5KW
• Servo motor power: 4.0KW
• Cutting type: Servo tracking cutting
• Cutting tolerance: 10m+/-1.5mm
• Encoder: OMRON Brand
• PLC: PANASONIC Brand or Custom-made

Working Flowing Chart

Decoiler / Uncoiler ---- Feeding guide & Leveling Device ---- Punching------Roll Forming ---- Servo Tracking

Cutting ------ Run out table

Main Components

Competitive Advantages

1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

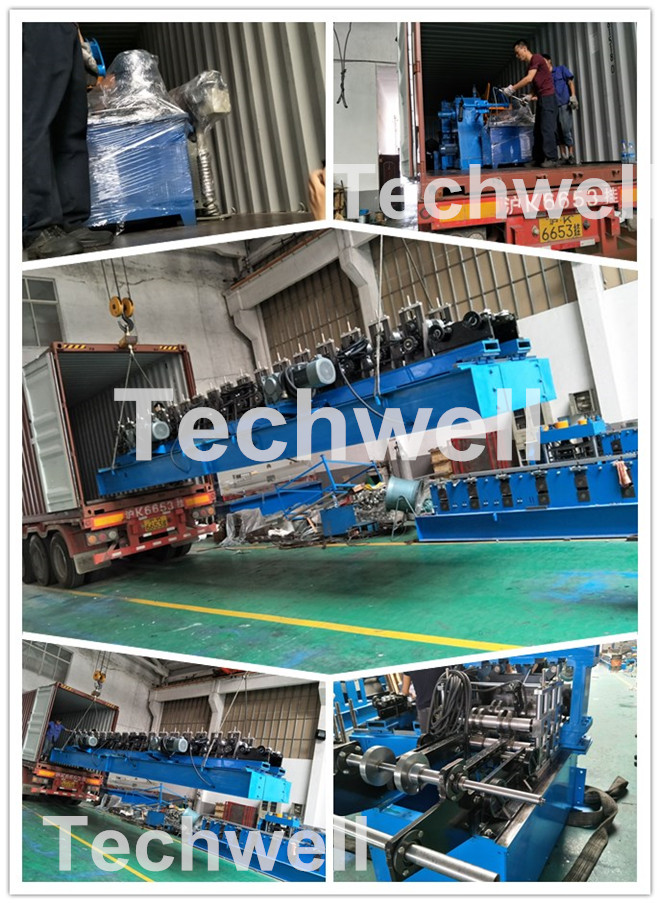

Deliver Machine Pictures
