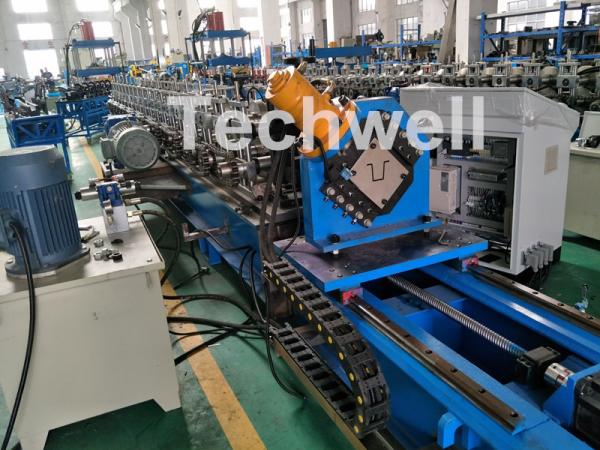

0-15m/Min Forming Speed Hat Channel Cold Roll Forming Machine For Raw Material GI, Carbon Steel

Main Technical Parameters of Hat Channel Roll Forming Machine

• Thickness of sheet: 1.5-3.0mm
• Coil width: Custom-made
• Material: GI, Carbon steel
• Decoiler / Uncoiler: Manual or hydraulic decoiler
• Feeding rollers: 4 rollers
• Leveling rollers: 7 rollers (upper 3 rollers, bottom 4 rollers)
• Punching type: Hydraulic punching
• Punching die: Cr12Mov, quenched, HRC58-62
• Forming stations: 14 stations (Depend on profiles)
• Roller material: GCr15 steel, HRC58-62
• Diameter of shaft: 80mm
• Shaft material: High grade 45# steel
• Drive type: Chain transmission
• Forming speed: 0-15m/min
• Main power: 15KW
• Hydraulic power: 7.5KW
• Cutting type: Servo tracking cutting
• Cutting tolerance: 10m+/-1.5mm
• Encoder: OMRON Brand
• PLC: PANASONIC Brand or Custom-made

Description of Hat Channel Roll Former

Main Components of Hat Channel Roll Former

• Decoiler / Uncoiler--------------------------------------------------------------------------1 Unit
• Pinch Feeding & Leveling-----------------------------------------------------------------1 Unit
• Punching--------------------------------------------------------------------------------------1 Unit
• Main Roll Forming Machine---------------------------------------------------------------1 Unit
• Cutting to Length----------------------------------------------------------------------------1 Unit
• Hydraulic Station-----------------------------------------------------------------------------1 Unit
• PLC Computer Control Board-------------------------------------------------------------1 Unit
• Runout Table---------------------------------------------------------------------------------1 Unit

Flow Chart of Hat Channel

Manual Decoiler ---- Feeding guide & Leveling Device ---- Punching------Roll Forming ---- Cutting ------

Run out table

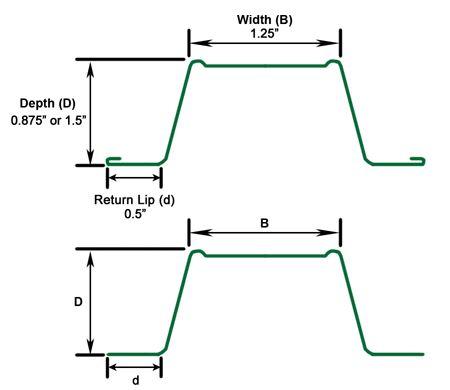

Hat Channel Roll Former Reference Profile Drawing

Competitive Advantages

1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements
