Metal Sheet Hat Channel Roll Forming Machine / Furring Channel Profile With 0-15m/min Forming Speed

Main Specifications

1. Roller material: GCr15 steel, HRC58-62

2. Forming stations: 14 stations (Depend on profiles)

3. Diameter of shaft: 80mm

4. Shaft material: High grade 45# steel

5. Thickness of sheet: 1.5-3.0mm

6. Yield strength: 250-350Mpa

7. Feeding rollers: 4 rollers

8. Leveling roller: 7 Rollers ( upper 3 rollers, bottom 4 rollers )

9. Punching type: Hydraulic punching

10. Punching die: Cr12Mov, quenched, HRC58-62

11. Drive type: Chain transmission

12. Forming speed: 0-15m/min

13. Main power: 15KW

14. Cutting type: Hydraulic cutting

15. Cutting blade: Cr12Mov, quenched

16. Cutting tolerance: 10m+/-1.5mm

17. Encoder: OMRON Brand

18. Hydraulic power: 7.5KW

Main Components

Applications

Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...

Competitive Advantages

1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

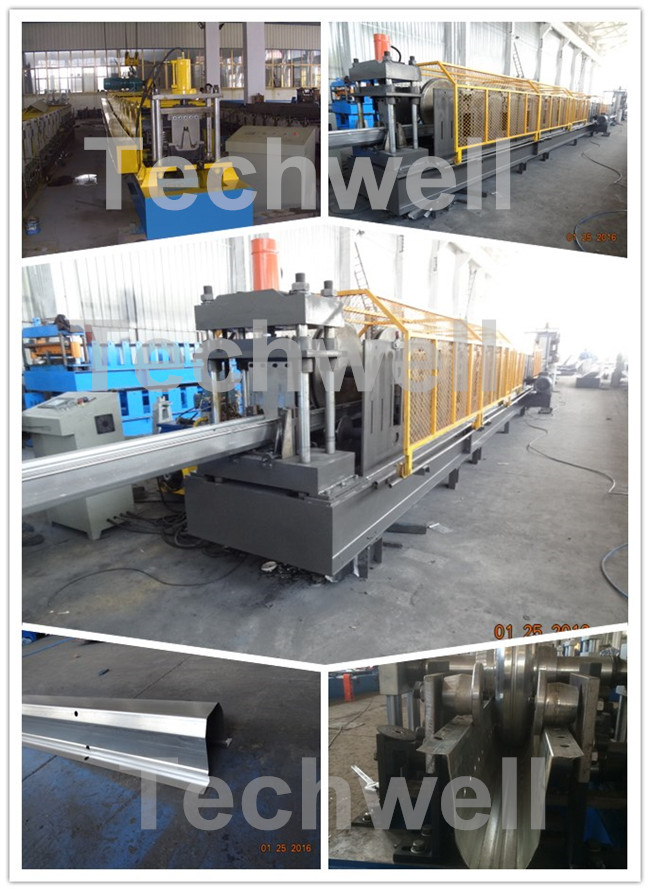

More Machine Pictures
