High Quality Hydraulic Decoiler / Uncoiler Machine With 0-15m/Min Uncoiling Speed, Coil Width 1500mm

Product Description

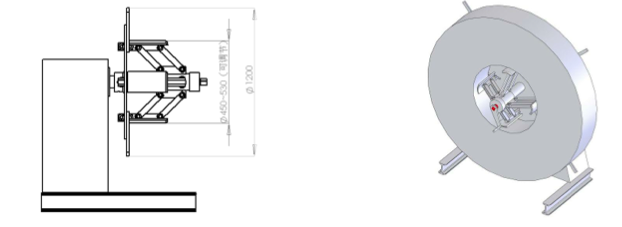

• The uncoiler consists of the uncoiler with pressing arm,frame with lead rail, and hydraulic system.The leafs of the uncoiler expanse , the coil be fixed on the uncoiler,main axis of the uncoiler rotate , the coil sheet comes out. After the coil sheet feed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.
• This machine can make stretch coil-deliver coil automatically, the speed of which is same with the forming machine. It is a matching machine for colored steel equipment. In order to save human recourse and lower labor cost, it is better to work with colored steel mould machine and stacker, with which it formed a completely porducing line.

Main Technical Specifications of Hydraulic Uncoiler

1. Coil Width: Max. 1500mm
2. Working Speed: 0-15m/min
3. Main Motor Power: 3.0KW
4. Hydraulic Power: 3.0KW
5. Electric Control: PLC control system
6. Tolerance Weight: 5T
7. Feeding type: Active uncoiling, hydraulic to expand
8. Material of main shaft: 40Cr
9. Hydraulic system pressure: 6.3Mpa

Competitive Advantages

1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements
