Cold Roll Forming Machine For Making Shutter Door Guide Rail with 16 Roller Stations

Introduction of Shutter Door Guide Rail Machine

1. The shutter door guide rail roll former includes decoiler, feeding device, punching device, main roll forming machine, hydralic cutting, PLC control system and run-out table

2. The guide rail roll forming machine rezlizes punching and lettering functions as requested by customers. The finished guide rails are commonly seen in elevator, doorframe, window frame, curtain track, electrical wiring trough as well as other devices that need sliding system.

Working Flow Chart

Decoiler---Leveling---Servo Feeding---Punching---Roll Forming---Hydraulic Post-Cutting---Run-out Table

Main Technical Parameters of Guide Rail Roll Former

1. Coil Material: Galvanized steel, carbon steel
2. Material Thickness: 1.5-3.0mm
3. Decoiler Type: Manual or Hydraulic or Auto type
4. Coil I.D: 508-610mm
5. Coil O.D: Max. 1500mm
6. Forming Stations: About 16 stations (Depend on profiles)
7. Roller Material: GCr15 steel, surface coated with 0.05mm hard chrome
8. Axis of Diameter: 85mm
9. Shaft Material: High grade 45# steel
10. Drive Type: Chain drive
11. Forming Speed: 0-15m/min (Not including cutting)
12. Main Power: 11KW
13. Punching Type: Hydraulic punching
14. Punching Mold Size: According to drawing
15. Cutting: Hydraulic cutting
16. Cutting Die Material: Cr12Mov
17. Cutting Tolerance: +/-1.5mm
18. PLC: Panasonic
19. Inverter: YASKAWA
20. Touch Screen: Panasonic

Main Components

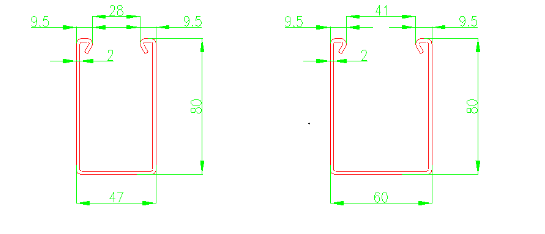

Reference Profile Drawing

Competitive Advantages

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

More Machine Pictures

Contacts of Details
