0-15m/min Forming Speed, Chain Drive Transmission Guide Rail Roll Forming Machine With Hydraulic Punching Device

Main Specifications

1). 3 Ton Manual Decoiler

1. Decoiler Type: Manual type decoiler

2. Weight capacity of decoiler: 3Ton

3. Manual expanding

4. Passive uncoiling

5. I.D: 508mm, 610mm

2). Feeding & Leveling Device

0-15m/min Forming Speed, Chain Drive Transmission Guide Rail Roll Forming Machine With Hydraulic Punching Device

1. Function: It is used to release the head of coil and feed into the forming machine, making the coil straight and flat after decoiling.

3). Guide Rail Roll Forming Machine

1. It consists of machine frame, transmission parts and forming rollers etc.

2. Material Thickness: 1.0-3.0mm

3. Forming Material Type: Galvanized steel, PPGI

4. Machine Frame Stand: Welded structural steel with shot blasting treatment

5. Shaft Diameter: 75mm

6. Material of Shaft: High grade 45# steel with heat treatment

7. Roller Material: High grade GCr15, model steel, all treated by CNC precise machines, HRC50-54

8. Forming Stations: about 17 stations (depend on final design)

9. Forming Speed: 0-15m/min

10. Forming Motor: 11KW

11. Forming Structure: Guiding column

12. Transmission: chain drive

13. Manually adjust the spaces and rollers can produce sheet of different thickness in a range.

4). Punching Device

1. Punching Type: Hydraulic punching

2. Punching Mold Size: According to drawing

3. Hydraulic Power: 5.5KW

5). Cutting Device

1. Cutting Type: Hydraulic cutting

2. Cutting Die Material: Cr12Mov

3. Cutting Tolerance: +/-1.5mm

6). PLC Control System

1. Adopts PLC control technology, frequency adjust speed technology, realize the automatic production.

2. Provide good man and machine screen, which can set the batches, plate length, and quantity.

3. Operation type: Touching screen + Button

4. Using encoder to calculate the number and measuring the length

5. Electrical control: PLC frequency control system with touch screen

6. PLC: PANASONIC Brand

7. Encoder: OMRON Brand

8. Size of PLC control board: 700mm (L) x 1000mm (H) x 300mm (W)

7). Run-out Table

1. It is used to support the finished panels

2. Teh table we supply is 2 pieces with length of 2000mm, it can support panels with 10000mm at normal condition

3. The frame of supporter is welded by square-steel

4. Simple non-power table type

Reference Profile Drawing

Working Flow

Decoiler --- Feeding and Leveling --- Main Roll Forming --- Hydraulic Punching --- Cut-to-length ---

Run out Table

Main Components

• Decoiler / Uncoiler -------------------------------------------------------1 Unit
• Feeding & Leveling Device --------------------------------------------1 Unit
• Main Roll Forming Machine --------------------------------------------1 Unit
• Hydraulic Punching Device ---------------------------------------------1 Unit
• Cutting Device-------------------------------------------------------------1 Unit
• Hydraulic Station----------------------------------------------------------1 Unit
• PLC Electrical Control Board ------------------------------------------1 Unit
• Run-out Table-------------------------------------------------------------1 Unit

Competitive Advantages

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

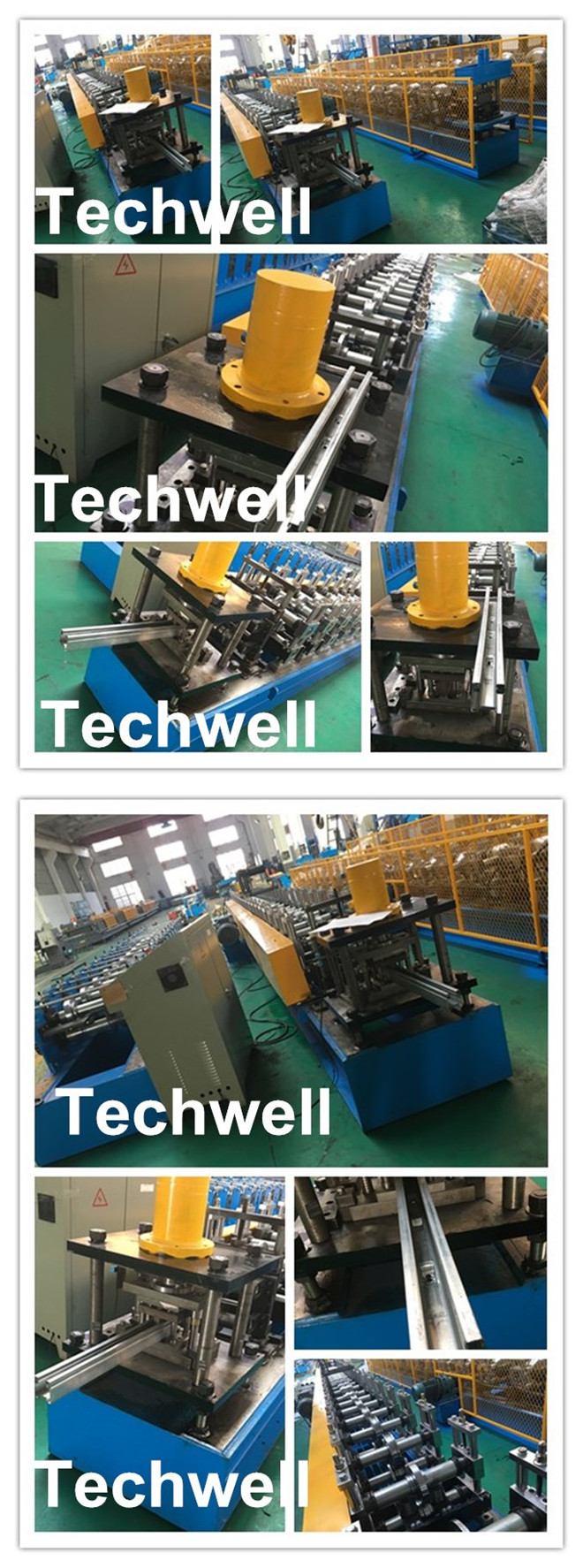

More Machine Pictures
