    0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control

    Ask Lasest Price
    Brand Name : TECHWELL
    Model Number : TW-CBT300
    Certification : CE, ISO
    Price : Contact us
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 10 Sets
    Delivery Time : 60-80 Working Days
    • Product Details
    • Company Profile

    0-15m/Min Cable Ladder Roll Forming Machine With Panasonic PLC Frequency Control

    Cable Ladder Roll Forming Machine with Panasonic PLC Frequency Control, Hydraulic Pre-Punching Device


    Main Technical Specifications


    NOTechnical SpecificationsRemark
    1Hydraulic DecoilerDecoiler TypeHydraulic decoiler
    Weight capacity of decoiler7 Ton
    Electric releasing coil, hydraulic expanding, tension
    Motor power5.5KW
    Hydraulic system power4.0KW
    27 Roller Leveling MachineLeveling device2 Rollers pinch feeding, 7 rollers leveling
    Leveling roller diameterabout Φ 90mm
    Leveling roller materialhigh grade 40Cr
    Heat treatment of leveling rollersurface Hi-frequency quench treatment
    Leveling motor power4.0KW
    3Servo Feeding MachineServo motor power3.0KW
    To exact accurately feed the sheet into punching machine according to the set program
    4Hydraulic Pre-Punching MachinePunching DieCr12 Mov, quenching process
    Punching Die sizeaccording to drawing
    Punching power15KW
    Punching controlled by PLC
    5Main Roll Forming MachineRaw materialGI or Carbon Steel
    Coil thickness1.0-2.5mm
    Roller standsapprox 18 stations
    Type of forming machineChain transmission
    Roller materialhigh grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
    Shaft diameter¢75mm
    Material of Shaft40Cr high grade Steel tempering treatment (HB220-260)
    Motor power15 KW
    Cutting typeHydrauluic cutting
    Hydraulic power15 KW
    Forming speedabout 0-15m/min
    6Hydraulic Cutting & Hydraulic StationCutting typeHydraulic Post-cutting
    Cutting blade materialCr12Mov, Quench treatment, HRC58-62
    Hydraulic power15 KW
    Length measuringAutomatic encoder length measuring
    Tolerance of length+/-1.5mm for each piece end product
    EncoderOMRON Brand
    7Electrical SystemPLCPANASONIC Brand
    InverterYASKAWA Brand
    Touch screenPANASONICE
    Operation typeTouch screen & Button
    8Hydraulic StationHydraulic stationFamous Chinese brand
    9Support TablesTable typeSimple nonpower type
    FunctionTo support the finished corrugated panels

    Cable Tray Profile Drawing



    Main Components


    • Hydraulic Decoiler --------------------------------------------------------- 1 Unit
    • Leveling Device ------------------------------------------------------------ 1 Unit
    • Servo Feeding -------------------------------------------------------------- 1 Unit
    • Hydraulic Pre-Punching -------------------------------------------------- 1 Unit
    • Main Roll Forming Machine ---------------------------------------------- 1 Unit
    • Hydraulic Cutting ------------------------------------------------------------1 Unit
    • PLC Electrical Control Board -------------------------------------------- 1 Unit
    • Hydraulic Stations ---------------------------------------------------------- 1 Unit
    • Run Out Table --------------------------------------------------------------- 1 Unit

    Working Flow Chart


    Decoiling --- Guiding & Leveling --- Punching --- Roll Forming --- Hydraulic Cutting --- Run-out Table


    Applications


    Cable tray, cable ladder, cable profile, tray profile

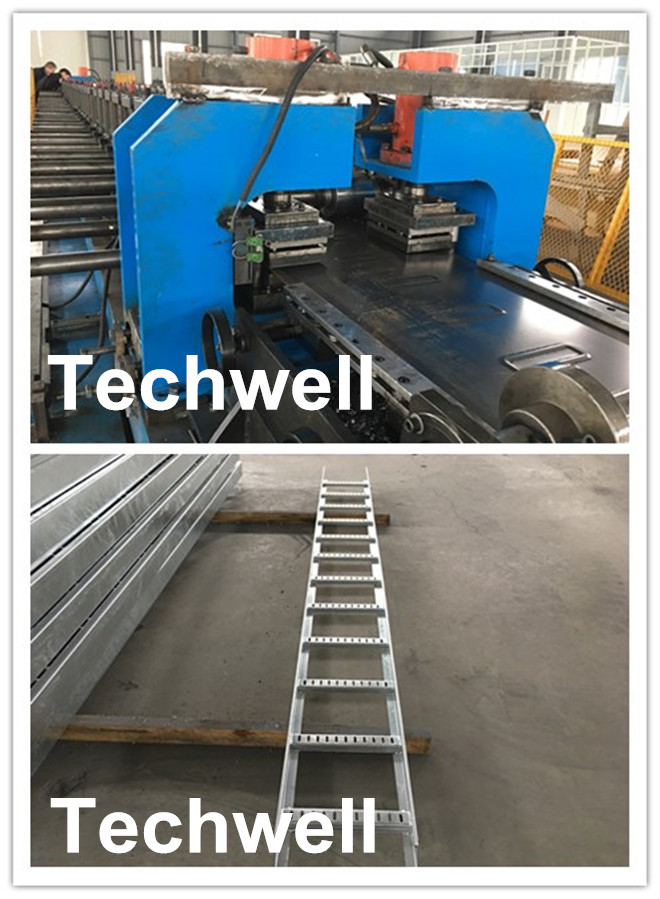

    More Machine Pictures
