Shelf Roll Forming Machine / Racking Upright Roll Forming Machine for Steel Rack, Steel Shelf

Main Specifications Of Shelf Roll Forming Machine

• Suitable Material: thickness 2.0-2.5mm, Galvanized coil or carbon steel
• Working Speed: 12-15m/min
• Forming Stations: 16 stations
• Roller Material: Cr12Mov, Quench HRC58-62
• Shaft Material: 45# Advanced Steel
• Shaft Diameter: 75mm
• Total power: 22.5kw
• Decoiler: Manual decoiler or Auto Decoiler or Hydraulic Decoiler (Depend on customer's requirement)
• Drive Type: Chain Drive
• Punching Type: Hydraulic punching
• Cutting Blade: Cr12Mov, quench HRC58-62
• Cutting Type: Hydraulic cutting
• The whole machine is controlled by industry computer-PLC
• PLC: PANASONIC Brand
• Encoder: Omron
• Inverter: YASKAWA Brand

Rack Profile Drawings

Working Flow

Decoiler – Feeding - Leveling– Servo Feeding –Hydraulic Punching – Pinch Feeding --- Main Roll Forming –

Straightness Device – Hydraulic Cutting -- Run out table

Main Components

Applications

Storage rack, storage shelf, Steel rack,steel shelf, rack beam

Our Advantages

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

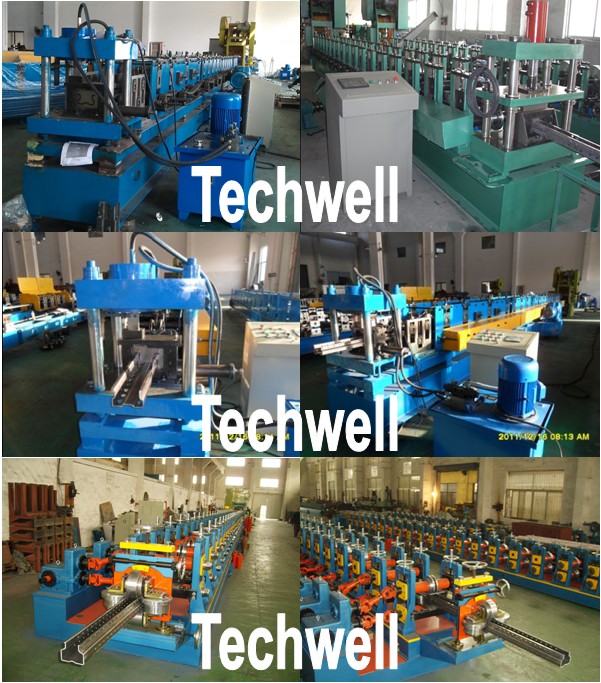

Machine Pictures

Wuxi Techwell Machinery Co.,Ltd is a professional manufacturer specializing in the developing and exporting of cold roll forming machines and insulated sandwich panel machines and Slitting cutting machines.

Roll Forming Machines: Metal roof & wall panel roll forming machine, steel tile roll forming machine, dual level roll forming machine, C/Z/U/L shaped steel roll forming machine, drywall stud and track roll forming machine, steel floor deck roll forming machine, highway guardrail roll froming machinem downspout roll forming machine, rainwater gutter roll forming machine, portable downspout / gutter machines, door frame roll forming machine, roller shutter door roll forming machine, no-girder k span arched panel roll forming machine, slitting & cutting, roof curving machine, stacker machine and so on.

Insulated Sandwich Panel Machines: PU sandwich panel machine, rubber belt pu sandwich panel machine, continuous pu sandwich panel machine, EPS sandwich panel machine, rockwool sandwich panel machine, eps & rockwool sandwich panel machine, mineral wool sandwich panel machine and so on.

Wuxi Techwell engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old customers. In paticular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, through design and installation. Our goal is " Future by heartiness, faith leads to the world".

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
