    K-Span Arch Roof Roll Forming Machine For 0.8 - 1.5mm Thickness Large Span Roof Panel

    Ask Lasest Price
    Brand Name : TECHWELL
    Certification : CE
    Model Number : TW-K610
    Price : Contact Us
    Delivery Time : 55-65 working days
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 sets
    • Product Details
    • Company Profile

    K-Span Arch Roof Roll Forming Machine For 0.8 - 1.5mm Thickness Large Span Roof Panel

    K-Span Arch Roof Roll Forming Machine For 0.8 - 1.5mm Thickness Large Span Roof Panel


    Main Specifications Of K-Span Arch Roof Roll Forming Machine

    Coil WidthAccording the profileRolling Speed
    Rolling Speed12-15m/min
    Rolling Thickness0.8-1.5mm
    Control SystemPLC Control
    UncoilerManual or Hydraulic Type
    Roller StationsAbout 17 Stations (according the final design)
    Roller Material45# forge steel, coated with chrome
    Shaft Material45# forge steel
    Axis Diameter85mm
    Cutting TypeHydraulic Cutting
    Main Motor Power15 KW
    Hydraulic Station Power5.5KW
    Hydraulic Pressure12-16Mpa adjustable
    Cutting Blade MaterialCr12Mov, quenching58-62
    Cutting Tolerance+/-1.5mm
    Electrical Source380V, 50HZ, 3Phase
    Drive TypeChain Drive



    Working Flow of K-Span Arch Roof Panel

    Decoiling—feeding—roll forming—-cut to length—product packing manual—arching—seaming

    Main Components

    Decoiler1 Set
    TrailerOptional
    Engine Power Unit (Generator)Optional
    Hydraulic Cut Device With Hydraulic Station1 Set
    Main K Span Roll Former1 Set
    Control System1 Set
    Panel Storage Racks1 Set
    Panel Hydraulic Curving Device1 Set
    Curved Panel Run Out Table1 Set



    K-Span Profile Drawings







    Applications


    K Span arched roof, k span roofing, large span roof, no-girder roof panel


    Out-put Table Finished Products



    Our Advantages

    • High Quality
    • Reliable
    • Durable
    • Reasonable Price
    • Good after Service
    • 1 Year Warranty
    • More Than 10 Years Experience

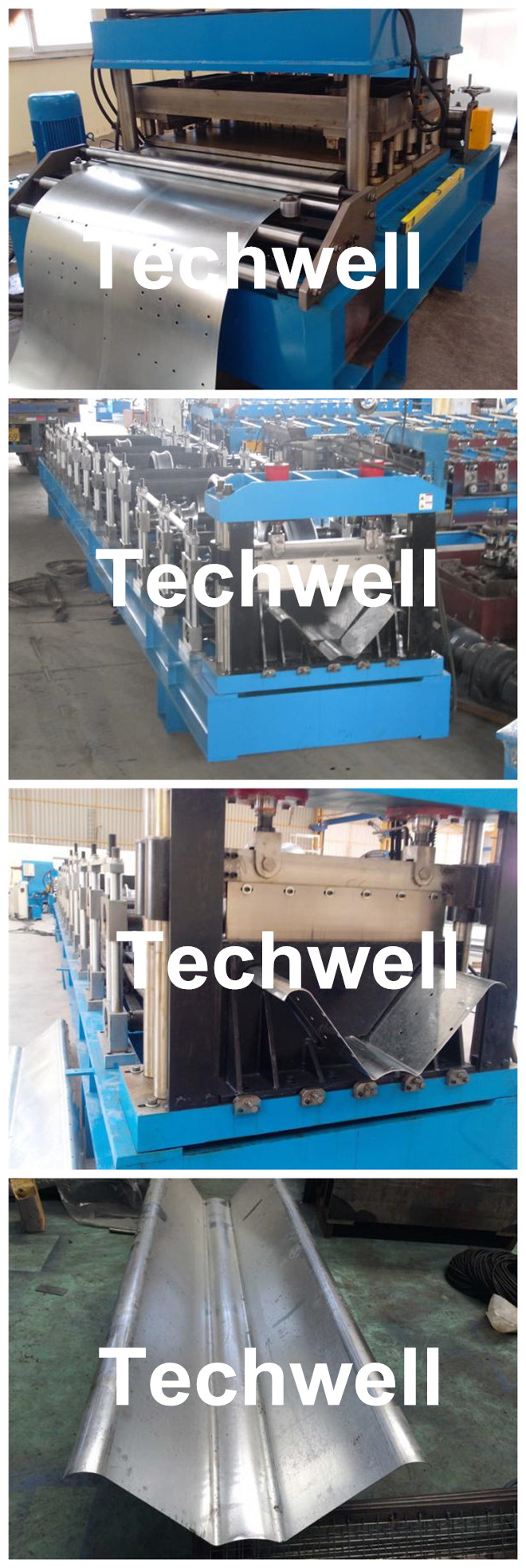

    Reference Machine Pictures



    Contacts of WUXI TECHWELL

    CompanyWuxi Techwell Machinery Co.,Ltd
    Websitewww.wxtechwell.com
    www.cold-rollformingmachine.com
    www.roofrollformingmachine.com
    Tel/Fax0086-510-83133431
    Mobile/Whatsapp0086-15861597732 (Miss Lemon)
    E-Mail/Skypesales@wxtechwell.com
    Reference Video Link

    https://youtu.be/jUy00vVkh3w
    https://youtu.be/WZLH-6tkUp0
    https://youtu.be/wrZ3nrfc_ag
