Electric Cutting 17 Stations 17.7KW Large Span Roof Panel Roll Forming Machine 45# Steel

Dsescription of Large Span Roll Forming Machine

• K span roll forming machine, also known as roll former, can be divided into vehicle-mounted k-span forming machine and floor-mounted k-span forming machine. It is mainly composed of decoiler, roll former, cutting device, curving machine, product table and computer control system. To realize a high performance in operation, K span roll forming machine can be debugged with little noise.

• The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
• All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
• We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

Main Specifications Of Large Span Roof Panel Roll Forming Machine

• Thickness of sheet: 0.8-1.5mm
• Mounting dimension of Large Span Roll Forming Machine: 8900mmx2250mmx2300mm
• Total weight: about 13 Ton
• Forming Station: 17 stations
• Control system: electric control
• Main motor power: 17.7KW
• Forming Power is 7.5KW
• Curving motor power: 4KW
• Electric cutting motor power: 4kw
• Conical Power is 2.2KW
• Material of rollers: 45# steel, quenched HRC58-62
• Material of shaft: 45# steel, adjusted
• Material of cutting blade: Cr12 steel
• Quenching hardness: HRC58-60

K-Span Profile Drawings

Applications

K Span arched roof, k span roofing, large span roof, no-girder roof panel

Our Advantages

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

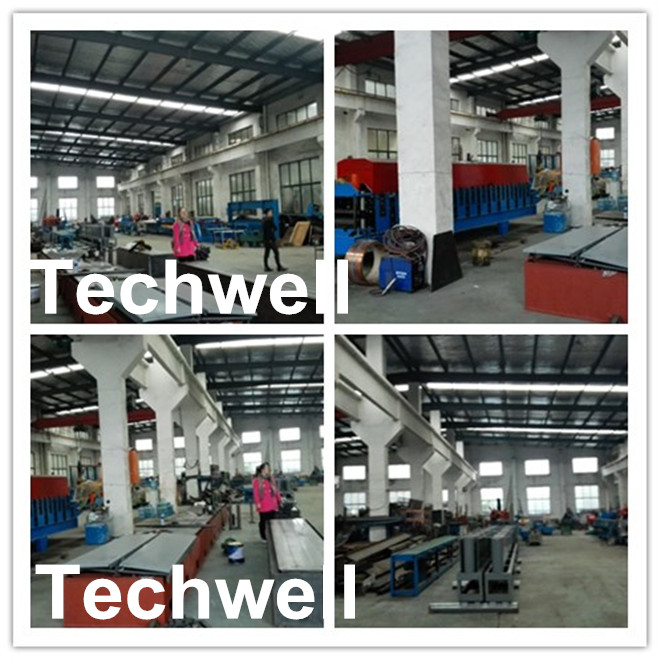

Factory Pictures
