Automatic 30KW 3 Wave Guardrail Roll Forming Machine With 2 - 4mm Material Thickness

Summary of 3 Wave Guardrail Roll Forming Machine

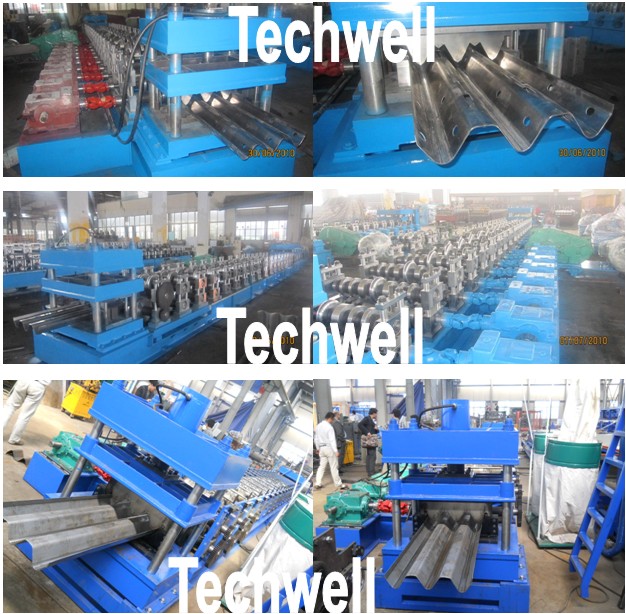

This 3 wave guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.

Thi

• Material Thickness: 2-4mm
• Forming Station: 15 excluding the feeding rollers and leveling rollers
• 7 Rollers leveling
• Principal Axis Diameter: ￠100mm
• Working Speed: 10-12m/min
• Main Power: 30KW
• Leveling Power: 2.2KW
• Hydraulic Power: 15KW
• Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
• Gross Weight of Machine: about 18 Ton
• Voltage: 380V, 3 Phase 50Hz

Main Components

• Hydraulic Decoiler ------------------------------------------ 1 Unit
• Leveling and Feeding Guide -------------------------------- 1 Unit
• Punching Device ------------------------------------------- 1 Unit
• Roll Forming Machine -------------------------------------- 1 Unit
• Hydraulic Cutting ------------------------------------------ 1 Unit
• Hydraulic Station ------------------------------------------ 1 Unit
• PLC Contol System ---------------------------------------- 1 Unit
• Runout Table ---------------------------------------------- 1 Unit
• Spare Coupling -------------------------------------------- 1 Unit

Reference Drawing

Our Advantage

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience
