Steel U Shape Roll Forming Machine for Making 1.5-3.0mm Thickness U Channel Profile

A). Main Specification of U Purlin Roll Forming Machine

• Material: HRC, CRC, GI
• Material thickness: 1.5-3.0mm
• Main power: 11KW
• Hydraulic power: 5.5KW
• Decoiler: Manual or hydraulic decoiler
• Weight capacity of decoiler: 5 Ton
• Axis diameter: 75mm
• Forming Station: 12 stations
• Principal axis material: 45# high grade steel, heated and quenched
• Roller material: GCr15 steel, quenched and heated process, HRC58-62
• Forming speed: 0-20m/min
• Drive: Chain transmission
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand

B). Working Flow of U Purlin Roll Forming Machine

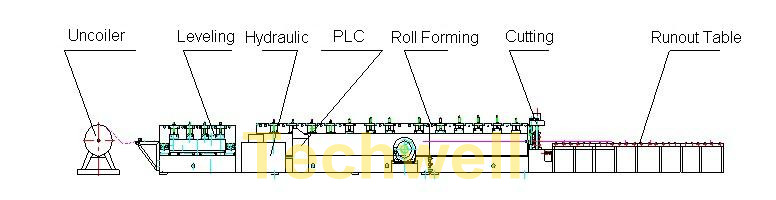

Decoiler --- Fedding & Leveling --- Roll Forming --- Cut-to-length --- Run out table

C). Main Component of U Purlin Roll Forming Machine

• Decoiler ------------------------------------------------- 1 Unit
• Feeding & Leveling ----------------------------------- 1 Unit
• Main roll forming machine ----------------------------1 Unit
• Hydraulic cutting device ------------------------------ 1 Unit
• Hydraulic Station -------------------------------------- 1 Unit
• PLC computer control -------------------------------- 1 Unit
• Output table -------------------------------------------- 1 Unit

D). Profile Drawing of U Purlin Roll Forming Machine





E). Application of U Purlin Roll Forming Machine


u purlin, u shaped purlin, u channel, u section, u profile, u shape, steel u purlin,u purlin steel structure


F). Our Advantages of U Purlin Roll Forming Machine

• Free Design
• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

G). Machine Pictures of U Purlin Roll Forming Machine







H). Factory Machine of Our Company








J). Main Certificates of Machine & Company
