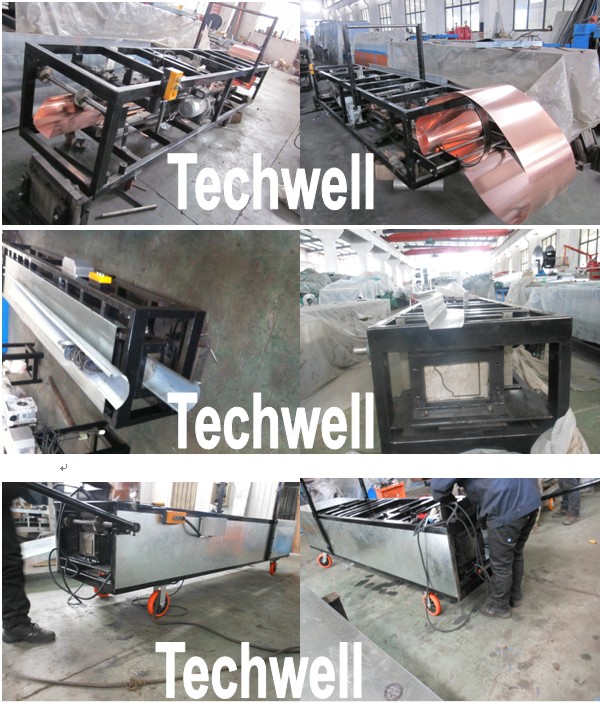

Steel 0.3mm - 0.6mm Mobile / Portable Gutter Roll Forming Machine for Rainwater Gutter

Main Specifications of Portable Type Gutter Roll Forming Machine

• Thickness of Materials Formed
  • Steel – 0.3mm to 0.6mm
  • Aluminum – 0.5 to 0.8mm
  • Copper – 0.5-0.7mm
• Electrical: 220V
• Drive Syestem:
• Bottom drive rollers and eleven top drive rollers for smooth even,
• non-twisting drive
• Hard chrome steel forming rollers
• Urethane power drive system
• Shear: Hand operated Quadra-Shear with built-in crimper or cutoff saw
• Speed: Standard 43ft. Per minute / Optional 45 or 60 ft per minute ( Aluminium )
• Controls: Push button entry and exit end controls with jog feature and power interruption safety wiring
• Forming: stainless steel forming rollers
• Frame Const: Welded tubular steel frame

Gutter Profile Drawings

Outline of Mobile Gutter Machine

Application

Rainwater gutter, k gutter, box gutter , seamless gutter

TECHWELL Advantage

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience
