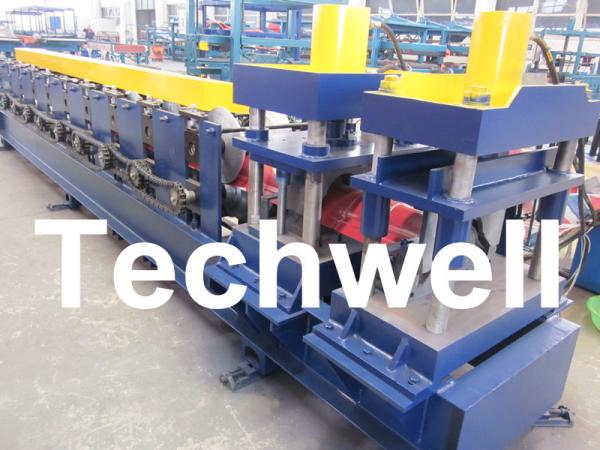

High Speed 15 Forming Station Top Cap Roll Forming Machine With Hydraulic Cutting

Technical Specifications

• Material thickness: 0.3-0.7mm
• Material width: depend on customer’s requirement
• Decoiler Type: manual or automatical type ( depend on customer’s requirement )
• Weight Capacity Of Decoiler: 5 Ton
• Main Motor Power: 5.5 Kw
• Hydraulic Motor Power: 7.5 Kw
• Forming Station: approx 15 ( depend on profile drawing )
• Axis Diameter: ¢ 75mm
• Working Speed: 0-15 m/min
• Transporting Type: Chain Transmission
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand
• Machine Weight: about 5 Ton

Working Flow

Decoiler --- Fedding Guide --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

Components

• Decoiler -------------------------------------------------------------------------------------------- 1 Unit
• Feeding guide ------------------------------------------------------------------------------------ 1 Unit
• Main roll forming machine --------------------------------------------------------------------- 1 Unit
• Hydraulic pressing device --------------------------------------------------------------------- 1 Unit
• Hydraulic cutting device ------------------------------------------------------------------------ 1 Unit
• Hydraulic Station --------------------------------------------------------------------------------- 1 Unit
• PLC computer control --------------------------------------------------------------------------- 1 Unit
• Output table ---------------------------------------------------------------------------------------- 1 Unit

Ridge Cap Profile

Application

Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.
