Specifications of Metal Tile Roll Forming Machine

• Material thickness: 0.3-0.7mm,Color Steel, Galvanised coil
• Material width: depend on customer’s requirement
• Decoiler Type: manual or automatical type ( depend on customer’s requirement )
• Weight Capacity Of Decoiler: 5 Ton
• Main Motor Power: 5.5 Kw
• Hydraulic Motor Power: 11 Kw
• Forming Station: 13-22 ( depend on profile drawing )
• Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
• Main Axis Material: High grade 45#, quenched and heat treatment.
• Axis Diameter: ¢ 75mm
• Working Speed: 0-15 m/min
• Transporting Type: Chain Transmission
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting
• Material Of Cutting Blade: C r 12
• Heat Treatment of Cutting Blade: HRC 50-60
• Machine Frame stand: Welded structural steel
• Thickmess of Fame Steel: 18mm
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand
• Machine Weight: about 8.5 Ton

Main Parts

1. Decoiler ------------------------------------------------------------------------------------------------ 1 Unit
2. Film covering device -------------------------------------------------------------------------------- 1 Unit
3. Feeding guide ---------------------------------------------------------------------------------------- 1 Unit
4. Main roll forming machine ------------------------------------------------------------------------- 1 Unit

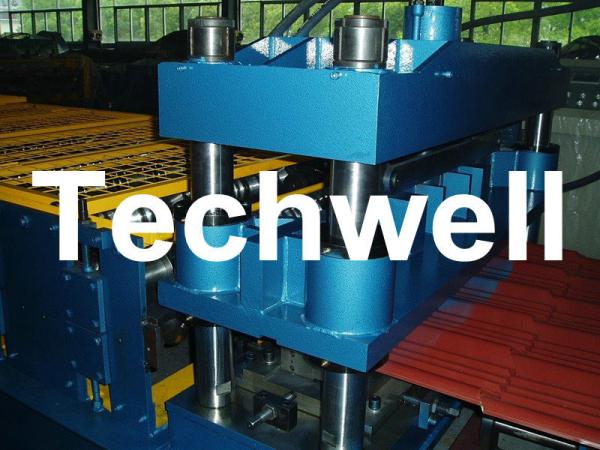

5. Hydraulic pressing device -------------------------------------------------------------------------- 1 Unit
6. Hydraulic cutting device ----------------------------------------------------------------------------- 1 Unit
7. Hydraulic Station -------------------------------------------------------------------------------------- 1 Unit
8. PLC computer control -------------------------------------------------------------------------------- 1 Unit
9. Output table --------------------------------------------------------------------------------------------- 1 Unit

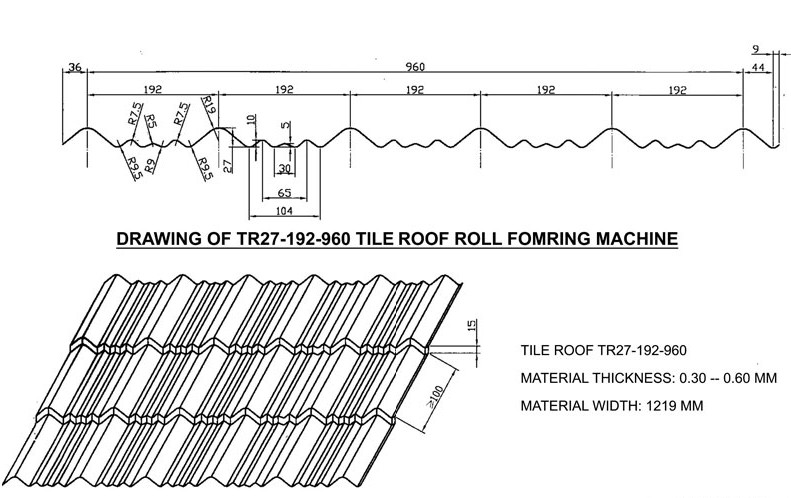

Tile Profile Drawing

Process Flow

Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

Application

Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
