    Chromadek IBR Roof Panel Roll Forming Machine With 0 - 15 m/min Working Speed

    Ask Lasest Price
    Brand Name : TECHWELL
    Certification : CE
    Model Number : TW-RWM
    Price : Contact Us
    Delivery Time : 55-65 working days
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 sets
    • Product Details
    • Company Profile

    Chromadek IBR Roof Panel Roll Forming Machine With 0 - 15 m/min Working Speed

    Chromadek IBR Roof Panel Roll Forming Machine With 0 - 15 m/min Working Speed


    Main Specifications of IBR Roof Panel Roll Forming Machine


    ItemIBR Roof Panel Roll Forming Machine
    Coil MaterialThickness0.3-0.8mm
    Coil widthCustom-made, 925mm or 940mm
    Yield Strength250-350 Mpa
    MaterialPPGI, Color Steel, GI.
    Decoiler / UncoilerDecoiler TypeManual or Hydraulic or Auto Type
    Coil WidthMax. 1250mm
    I.D508-610mm
    O.DMax. 1500mm
    IBR Roof Panel Roll FormingMachineForming Stations18 Stations ( Depend on Profiles )
    Roller material45# steel, surface coated with 0.05mm hard chrome
    Diameter of shaft76mm
    Shaft materialHigh grade 45# steel
    Drive typeChain transmission
    Forming speed0-15m/min
    Main power5.5KW
    Cutting DeviceCutting typeHydraulic cutting
    Cutting Die MaterialCr12Mov steel, HRC58-62
    Cutting power3KW
    CuttingTolerance10m+/-1.5mm
    EncoderOMRON Brand
    Electrical Control SystemPLCPANASONIC Brand
    InverterYASKAWA Brand
    Touch screenPANASONICE
    Operation typeTouch screen & Button
    Hydraulic StationHydraulic stationFamous Chinese brand
    Runout TableTable typeSimple nonpower type
    FunctionTo support the finished panels

    Main Components of IBR Panel Roll Forming Machine


    Decoiler / Uncoiler1 Unit
    Feeding Guide1 Unit
    IBR Roof Panel Roll Forming Machine1 Unit
    Hydraulic Cutting Part1 Unit
    Hydraulic Station1 Unit
    PLC Computer Control Box1 Unit
    Runout Table2 Units

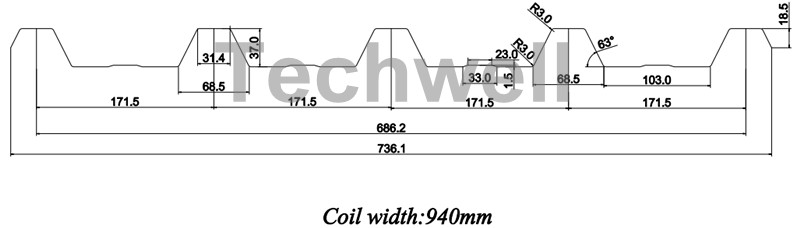

    Reference IBR Roof Drawings


    Applications


    IBR Roof Panel, IBR Sheets, IBR Roofing, IBR Sheeting, Trapezoidal roof panel, trapezoidal sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding


    Our Advantage


    • Copra designing software
    • 5-8 technicians every month specially do international installation and debugging
    • High Quality
    • Reasonable Price
    • Good after Service
    • 1 Year Warranty
    • More Than 10 Years Experience

    IBR Roof Panel Forming Machine Pictures
