    7.5KW High Speed Double Deck / Layer Roll Forming Machine With Automatic Hydraulic Cutting

    Ask Lasest Price
    Brand Name : TECHWELL
    Certification : CE
    Model Number : TW-DLM
    Price : Contact Us
    Delivery Time : 55-65 working days
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 sets
    • Product Details
    • Company Profile

    7.5KW High Speed Double Deck / Layer Roll Forming Machine With Automatic Hydraulic Cutting

    7.5KW High Speed Double Deck / Layer Roll Forming Machine With Automatic Hydraulic Cutting


    A). Main Specifications of Double Layer Roll Forming Machine

    • Material thickness: 0.3-0.8mm
    • Material width: depend on customer’s requirement
    • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
    • Weight Capacity Of Decoiler: 5 Ton
    • Main Motor Power: 7.5 Kw
    • Hydraulic Motor Power: 3 Kw
    • Forming Station: approx 18 & 18 ( depend on profile drawing )
    • Electrical Control: PLC Frequency Control System with touch screen
    • PLC: PANASONIC Brand
    • Encoder: OMRON Brand
    • Transducer: PANASONIC Brand
    • Machine Weight: about 8.5 Ton

    B). working Flow of Double Layer Roll Forming Machine


    Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table


    C). Main Componerts of Double Layer Roll Forming Machine


    Decoiler / Uncoiler1 Unit
    Feeding Guide1 Unit
    Main Roll Forming Machine1 Unit
    Hydraulic Cutting Device1 Unit
    Hydraulic Station1 Unit
    PLC Computer Control1 Unit
    Runout Table2 Units

    D). Applications of Double Layer Roll Forming Machine


    Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet;


    metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding


    E). Reference Drawings of Double Layer Roll Forming Machine

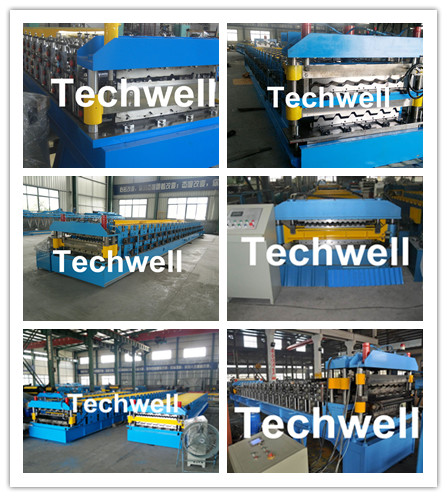

    G). More Reference Machine Prictures of Double Layer Roll Forming Machine


    H). Factory Pictures of Our Company




    J). FAQ


    Q: Do you sell only standard machines?

    A: No, most of our machines are built according to customers specifications, using top brand name components.


    Q: What size decoiler can you supply us with?

    A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler.


    Q: Do you have a warranty on your machines?

    A: One year warranty excluding electrical components.


    Q: Do you have instruction manuals?

    A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.


    Q: Once a machine arrives at our factory what happens then?

    A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.


    Q: What do I need to offload my machine from the container?

    A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.


    Q: My current machine rollers need to be replaced. Would you be able to assist me?

    A: Yes. Send us your profile and specifications then we will manufacture the rollers for you.


    Q: Do we receive any updates while machine is in the manufacturing process?

    A: Yes.Regular updates on progress will be sent to you.
