    5 Ton Uncoiler 14 Stations Tapered Panel Roll Forming Machine For Bemo Roof Panel

    Ask Lasest Price
    Brand Name : TECHWELL
    Certification : CE
    Model Number : TW-STM400
    Price : Contact Us
    Delivery Time : 55-65 working days
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 sets
    • Product Details
    • Company Profile

    5 Ton Uncoiler 14 Stations Tapered Panel Roll Forming Machine For Bemo Roof Panel


    5 Ton Uncoiler 14 Stations Tapered Panel Roll Forming Machine For Bemo Roof Panel


    Main Specifications of Taper Panel Roll Forming Machine

    • Material thickness: 1mm
    • Decoiler: Manual or hydraulic decoiler
    • Weight capacity of uncoiler: 5 Ton
    • Forming Speed: 0-15m/min
    • Forming Station: 16 stations
    • Drive: Chain transmission
    • Main power: 5.5KW
    • Cutting: Hydraulic cutting
    • Cutter material: Cr12Mov, Quenched HRC58-62
    • PLC: Panasonic Brand
    • Support table: Simple Nonpower type
    • Machine weight: about 6Ton
    • Electrical Control: PLC Frequency Control System with touch screen
    • PLC: PANASONIC Brand
    • Encoder: OMRON Brand
    • Transducer: PANASONIC Brand


    Main Component

    • Decoiler --------------------------------------------------------------------- 1 Unit
    • Feeding guide ------------------------------------------------------------- 1 Unit
    • main roll forming machine ----------------------------------------------- 1 Unit
    • Hydraulic cutting device ------------------------------------------------- 1 Unit
    • Hydraulic Station ---------------------------------------------------------- 1 Unit
    • PLC computer control ---------------------------------------------------- 1 Unit
    • Output table ---------------------------------------------------------------- 1 Unit


    Working Flow
    Decoiler -> Slitting & Cutting -> Feeding -> Roll Forming For One Side -> Roll Forming For The Other Side -> Roll Forming For the Middle Rib -> Runout Table

    Reference Drawings

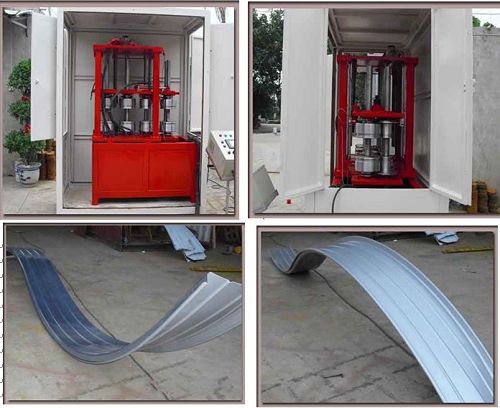

    Machine Picture
