    Color Steel Roof Tile Roll Forming Machine for Making Metal Roof Tile

    Ask Lasest Price
    Brand Name : TECHWELL
    Certification : CE
    Model Number : TW-RWM
    Price : Contact Us
    Delivery Time : 55-65 working days
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 sets
    • Product Details
    • Company Profile

    Color Steel Roof Tile Roll Forming Machine for Making Metal Roof Tile


    Color Steel Roof Tile Roll Forming Machine for Making Metal Roof Tile Sheet

    A). Reference Specifications of Tile Roof Panel Roll Forming Machine

    • Material thickness: 0.3-0.8mm
    • Material width: depend on customer’s requirement
    • Main Motor Power: 5.5 Kw
    • Hydraulic Motor Power: 3 Kw
    • Forming Station: 13-20 ( depend on profile drawing )
    • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
    • Main Axis Material: High grade 45#, quenched and heat treatment.
    • Axis Diameter: ¢ 76mm
    • Working Speed: 0-15 m/min
    • Transporting Type: Chain Drive
    • Type of Cutting: Hydraulic cutting
    • Material Of Cutting Blade: C r 12
    • Electrical Control: PLC Frequency Control System with touch screen
    • PLC: PANASONIC Brand
    • Encoder: OMRON Brand
    • Transducer: PANASONIC Brand
    • Machine Weight: about 5 Ton

    B). Composition of Tile Roof Panel Roll Forming Machine


    Decoiler / Uncoiler1 Unit
    Feeding Guide1 Unit
    Steel Roof Tile Roll Forming Machine1 Unit
    Hydraulic Cutting System1 Unit
    Hydraulic Station1 Unit
    PLC Computer Control Box1 Unit
    Support Tables2 Units

    C). Maintenance of Tile Roof Panel Roll Forming Machine


    Daily maintenance plays an very importance role in extending the operation time and of Metal roof tile roll forming machine and the good quality finished metal roofing tile. The following points should be part of the machine's daily production and usage routine.


    1. Regularly lubricated the outside parts of the roof tile roll forming machine, such as the driving chain...
    2. Regularly brush the surface of roller, particularly when working outside. If you do not use the roof tile panel forming machine in a long time, you should apply luricating oil on the roller surface, make sure you clean it for next time running machine.
    3. If the roofing tile roll forming machine is not operated in a long period, should cover it with plastic film, to avoid getting rain or dust on the machine, or avoid the machine becoming dampt, especially the PLC electric control board.
    4. Make sure the cutting system is lubricated when necessary.
    5. Check the Hydraulic station often and the oil quantity of the deceleration machines, add more oil if the oil level is low.
    6. Check the electric appliances box and every leads conjuction circumstance of the roof tile roll forming machine.

    D). Working Flow of Tile Roof Panel Roll Forming Machine


    Decoiler ---> Fedding Guide ---> Roll Forming ---> Cut-to-length ---> Run out table


    E). Reference Profiel Drawing of Tile Roof



    F). Our Advantages of Roll Forming Machine


    • 5-8 technician eapecially do international installation and debugging
    • Copra design software
    • High Quality
    • Reasonable Price
    • Good after Service
    • 1 Year Warranty
    • More Than 10 Years Experience

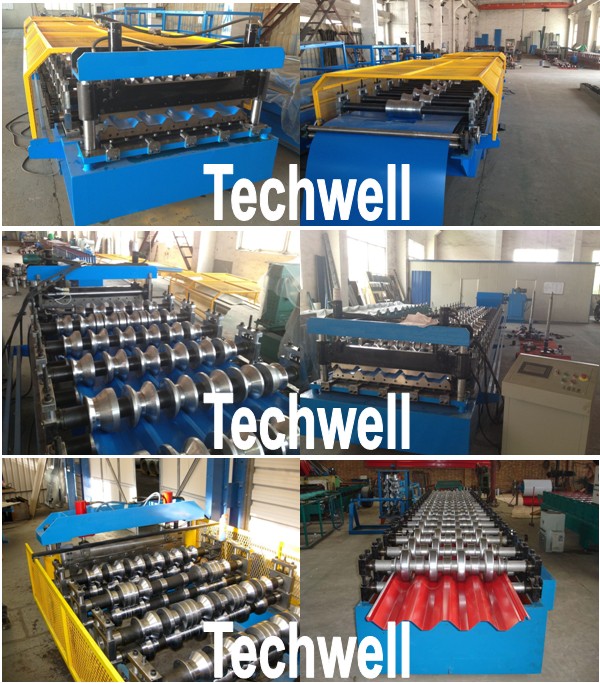

    G). Reference Pictures of Tile Roof Panel Roll Forming Machine



    H). Contact Us freely


    CompanyWuxi Techwell Machinery Co.,LTD
    Websitewww.cold-rollformingmachine.com
    www.roofrollformingmachine.com
    www.wxtechwell.com
    Videowww.youtube.com/wxtechwell
    Tel / Fax0086-510-83133431
    Mobile0086-18018304331 ( Miss Lee )
    E-Mailmonica@wxtechwell.com
    Skypemonica198614
    MSNlixiaohua_monica@hotmail.com

    I). FAQ


    1)Q: What is the Warranty Machine?
    A: For our roll forming machine , we have 1 year warranty. If any quality problems in this period ,we will take on the shipping cost and replacement.


    2)Q: Do you have after sales support?
    A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.


    3) Q: How do your machines compare with other big companies in this market?
    A: We are up to date with the latest technology and improve our machines accordingly.


    4)Q: How does your factory do regarding quality control?
    A: Quality is priority. We always attach great importance to quality control from the very
    beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

    5) Q: Do you sell only standard machines?
    A: No, most of our machines are built according to customers specifications, using top brand name components.

    6) Q: Will you deliver the right goods as ordered? How can I trust you?
    A: Yes, we will. The core of our company culture is honesty and credit. We have good reputation in this field for ten years' experience.
