Minimalist Steel Tile Roll Forming Machine For Material Thickness 0.2 - 0.75mm

Specifications of Steel Tile Roll Forming Machine

• Material thickness: 0.2-0.75mm,Color Steel, Galvanised coil
• Material width: depend on customer’s requirement
• Decoiler Type: manual or automatical type ( depend on customer’s requirement )
• Weight Capacity Of Decoiler: 5 Ton
• Main Motor Power: 5.5 Kw
• Hydraulic Motor Power: 11 Kw
• Forming Station: 13-22 ( depend on profile drawing )
• Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
• Main Axis Material: High grade 45#, quenched and heat treatment.
• Axis Diameter: ¢ 75mm
• Working Speed: 0-15 m/min
• Transporting Type: Chain Transmission
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting
• Material Of Cutting Blade: C r 12
• Heat Treatment of Cutting Blade: HRC 50-60
• Machine Frame stand: Welded structural steel
• Thickmess of Fame Steel: 18mm
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand
• Machine Weight: about 8.5 Ton

Main Components

1. Decoiler -------------------------------------------------------------------------------------- 1 Unit
2. Film covering device ---------------------------------------------------------------------- 1 Unit
3. Feeding guide ------------------------------------------------------------------------------- 1 Unit
4. Main roll forming machine ---------------------------------------------------------------- 1 Unit
5. Hydraulic pressing device ---------------------------------------------------------------- 1 Unit
6. Hydraulic cutting device ------------------------------------------------------------------- 1 Unit
7. Hydraulic Station ---------------------------------------------------------------------------- 1 Unit
8. PLC computer control ---------------------------------------------------------------------- 1 Unit
9. Output table ----------------------------------------------------------------------------------- 1 Unit

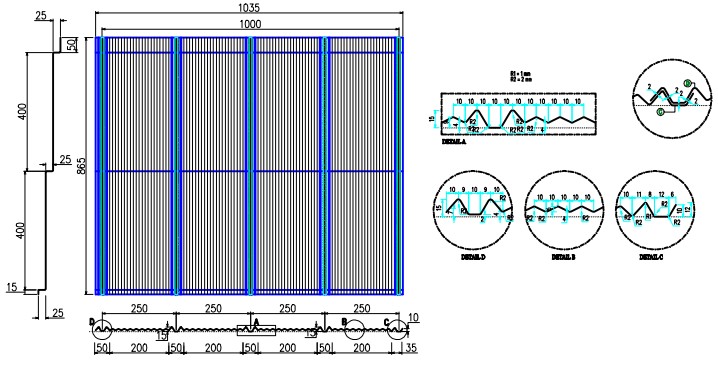

Tile Profile Drawing

Working Flowing

Decoiler ---> Fedding Guide ---> Film Covering ---> Roll Forming ---> Pressing ---> Cut-to-length ---> Run out table

Application

Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
