    Hi-Rib Roofing Sheet Roll Forming Machine With Panasonic PLC Control System

    Ask Lasest Price
    Brand Name : TECHWELL
    Certification : CE
    Model Number : TW-RWM
    Price : Contact Us
    Delivery Time : 55-65 working days
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 sets
    • Product Details
    • Company Profile

    Hi-Rib Roofing Sheet Roll Forming Machine With Panasonic PLC Control System


    Hi-Rib Roofing Sheet Roll Forming Machine With Panasonic PLC Control System


    Components of Hi-Rib Roofing Sheet Roll Forming Machine


    Decoiler / Uncoiler1 Unit
    Feeding Guide1 Unit
    Hi-Rib Roofing Sheet Roll Forming Machine1 Unit
    Hydraulic Cutting Device1 Unit
    Hydraulic Station1 Unit
    PLC Computer Control Board1 Unit
    Runout Table2 Units

    Technical Specifications of Hi-Rib Roof Sheet Roll Forming Machine


    ItemHi-Rib Roofing Sheet Roll Forming Machine
    Coil MaterialThickness0.3-0.8mm
    Coil widthCustom-made, 1000mm or 1200mm or 1250mm
    Yield Strength250-350 Mpa
    MaterialPPGI, Color Steel, GI.
    Decoiler / UncoilerDecoiler TypeManual or Hydraulic or Auto Type
    Coil WidthMax. 1250mm
    I.D508-610mm
    O.DMax. 1500mm
    Hi-Rib Roofing Sheet Roll FormingMachineForming Stations13-18 Stations ( Depend on Profiles )
    Roller material45# steel, surface coated with 0.05mm hard chrome
    Diameter of shaft76mm
    Shaft materialHigh grade 45# steel
    Drive typeChain transmission
    Forming speed0-15m/min
    Main power5.5KW
    CuttingCutting typeHydraulic cutting
    Cutting Die MaterialCr12Mov steel, HRC58-62
    Cutting power3KW
    CuttingTolerance10m+/-1.5mm
    EncoderOMRON Brand
    Electrical controlPLCPANASONIC Brand
    InverterYASKAWA Brand
    Touch screenPANASONICE
    Operation typeTouch screen & Button
    Hydraulic StationHydraulic stationFamous Chinese brand
    Runout TableTable typeSimple nonpower type
    FunctionTo support the finished panels

    Roof Profile Drawings



    Applications


    Trapezoidal roof panel, trapezoidal sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

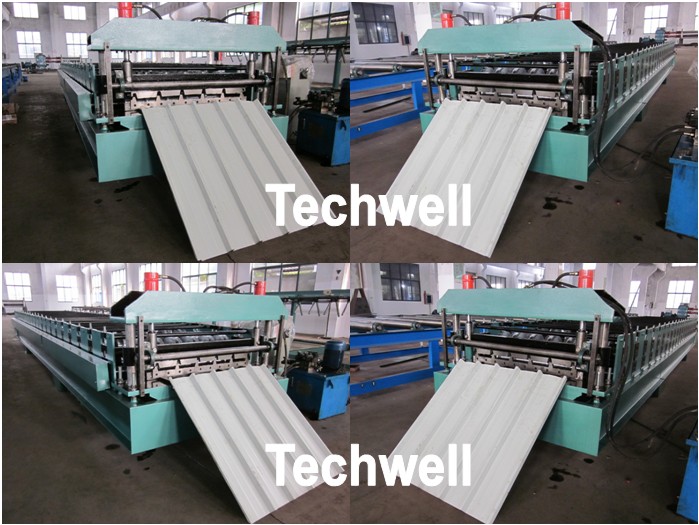

    Pictures of Hi-Rib Roof Sheet Roll Forming Machine



    Contacts


    CompanyWuxi Techwell Machinery Co.,LTD
    Websitewww.cold-rollformingmachine.com
    www.roofrollformingmachine.com
    www.wxtechwell.com
    Videowww.youtube.com/wxtechwell
    Tel / Fax0086-510-83133431
    Mobile / Whatsapp / Viber0086-18018304331 ( Miss Lee )
    E-Mailmonica@wxtechwell.com
    Skypemonica198614
